Kia Cee'd: Back View Camera System / Schematic diagrams

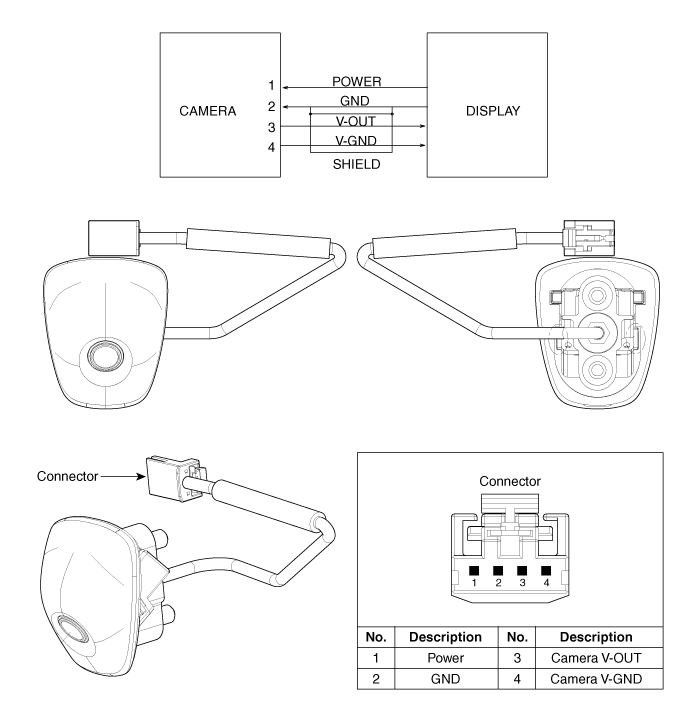

| Circuit Diagram |
Components and components location
Component Location
1. Back view camera
2. Inside mirror with rear camera display
3. A/V or Audio head unit monitor
...
Description and operation
Description
To provide the driver the rear of the vehicle, the backview camera receives
the vehicle rearview image signal and displays the image on the AV head unit
monitor or on ...
