Kia Cee'd: Keyless Entry and Burglar Alarm / Transmitter Repair procedures
Kia Cee'd JD Service Manual / Body Electrical System / Keyless Entry and Burglar Alarm / Transmitter Repair procedures
| Inspection |
| 1. |
Check that the red light flickers when the door lock or unlock button
is pressed on the transmitter.
|
| 2. |
Remove the battery (A) and check voltage if the red light doesn't flicker.
|
| 3. |
Insert the battery (A) into the tester (09954-2P100).
|
| 4. |
Push the test button and If "0.00" is displayed on screen, it means
that the battery voltage is 2V or less.
|
| 5. |
If "L" is displayed on screen, it means that the battery is low power
and it needs to replace.
|
| 6. |
To prevent the discharge of electricity, turn the tester power off.
|
| 7. |
Replace the transmitter battery with a new one, if voltage is low power
then try to lock and unlock the doors with the transmitter by pressing
the lock or unlock button five or six times.
|
| 8. |
If the doors lock and unlock, the transmitter is O.K, but if the doors
don't lock and unlock, register the transmitter code, then try to lock
and unlock the doors.
|
| 9. |
If the doors lock and unlock, the transmitter is O.K, but if the doors
don't lock and unlock, replace the transmitter.
|
| Transmitter Code Registration (Using GDS) |
| 1. |
Connect the DLC cable of GDS to the data link connector (16 pins) in
driver side crash pad lower panel, turn the power on GDS.
|
| 2. |

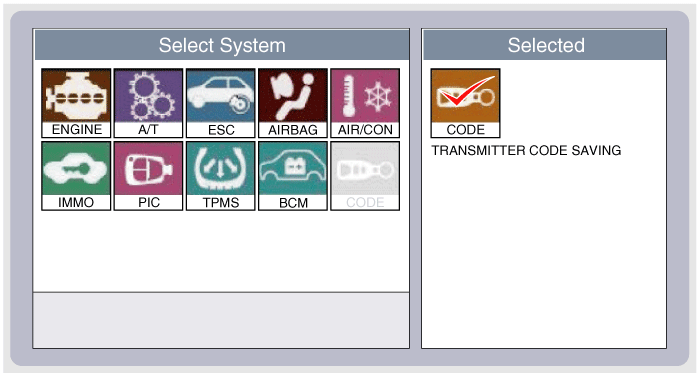

Select the vehicle model and then do "CODE SAVING"
|
| 3. |
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen
will be shown as below.
|
| 4. |

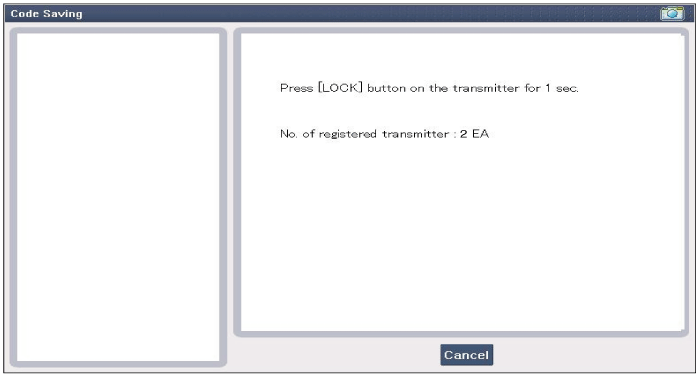

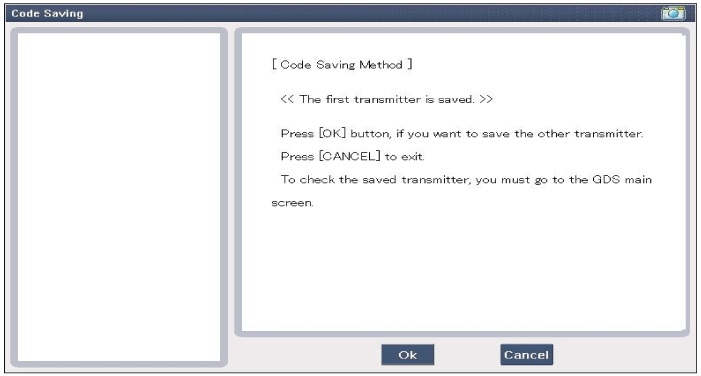

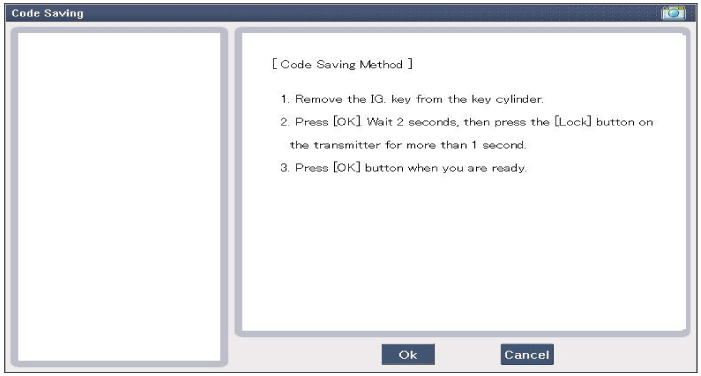

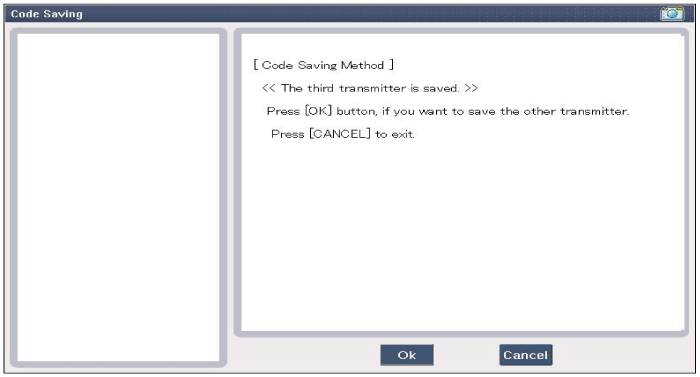

After removing the ignition key from key cylinder, push "ENTER" key
to proceed to the next mode for code saving. Follow steps 1 to 4 and
then code saving is completed.
|
Transmitter Specifications
Specification
Item
Description
Power source
3V
Operating temperature
-20°C ~ +60°C (-4°F ~ ...
