Kia Cee'd: Brake System / Vacuum Pump Components and components location
Kia Cee'd JD Service Manual / Brake System / Brake System / Vacuum Pump Components and components location
| Components |

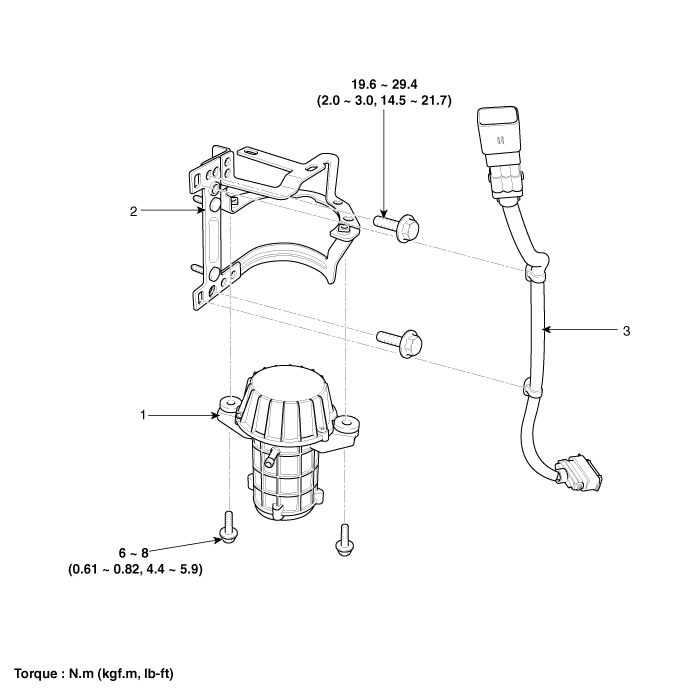

Gamma 1.6 T-GDI
| 1. Vacuum pump 2. Bracket |
3. Lead wire assembly |

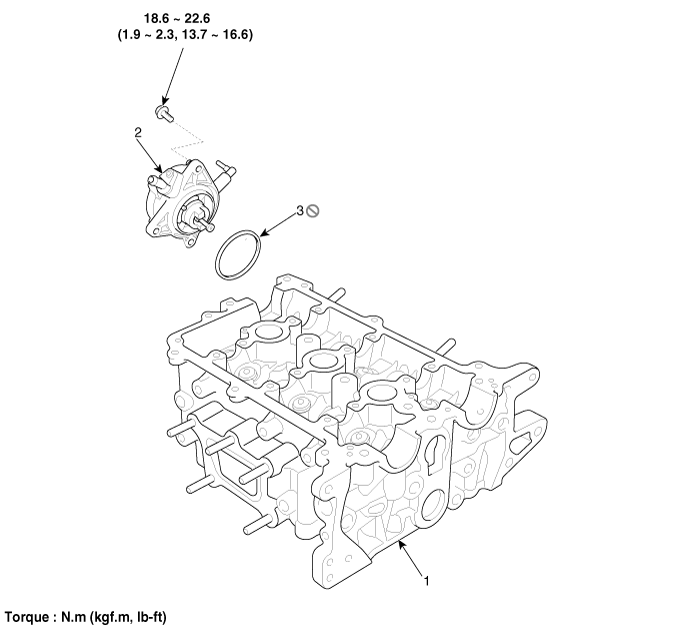

Kappa 1.0 T-GDI
| 1. Cylinder head 2. Vacuum pump |
3. Vacuum pump O-ring |
