Kia Cee'd: Engine Control System / Variable Intake Solenoid (VIS) Valve Description and operation
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Description and operation
| Description |
Variable Intake manifold Solenoid (VIS) valve is installed on the intake manifold.
The VIS valve controls the vacuum modulator which activates a valve in the intake
manifold. The ECM opens or closes this valve according to engine condition (Refer
to below table).
|

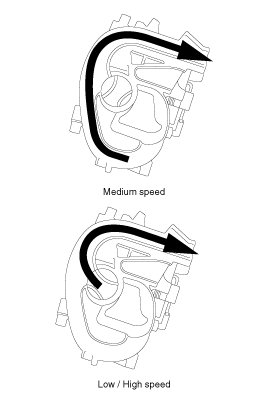

Engine condition |
VIS valve |
Operation |
|
Medium speed |
Closed |
Increasing engine performance in low engine speed by reducing intake interference
among cylinders |
|
Low / High speed |
Open |
Minimizing intake resistance by shortening intake manifold length and increasing
area of air entrance |
CVVT Oil Control Valve (OCV) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the OCV connector.
3.
Measure resistance betwee ...
Variable Intake Solenoid (VIS) Valve Specifications
Specification
Item
Specification
Coil resistance (Ω)
30.0 ~ 35.0 [20°C(68°F)]
...
