Kia Rio: Power Train / Air Cleaner Filter
Repair procedures
| Inspection |
| 1. |
Remove the air cleaner element. |
| 2. |
Check that the air filter is excessively dirty. If the air filter is excessively dirty, replace the air cleaner element. |
| 3. |
If the air cleaner element needs to be cleaned, blow compressed air as shown in the illustration to clean it.
|
| 4. |
Reinstall the air cleaner element. |
| Replacement |
| 1. |

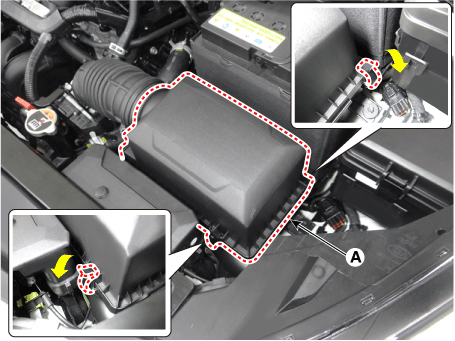

Open the air cleaner element cover (A) by unlocking the clamp.
|
| 2. |

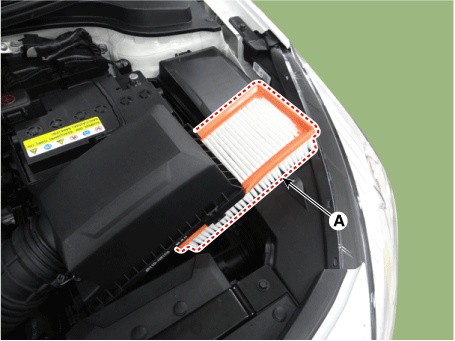

Replace the air cleaner element (A) with a new one.
|
| 3. |
Close the air cleaner cover by hooking the clamps. |
