Kia Rio: Evaporative Emission Control System / Canister
Repair procedures
| Removal |
| 1. |
Turn the ignition switch OFF and disconnect the battery negative (-) terminal. |
| 2. |
Remove the fuel tank assembly. (Refer to Fuel System - "Fuel Tank") |
| 3. |
Disconnect the vapor hose and quick-connector (A) and ventilation hose (B).
|
| 4. |
Remove the mounting bolt (A) and then remove the canister.
|
| Inspection |
| 1. |

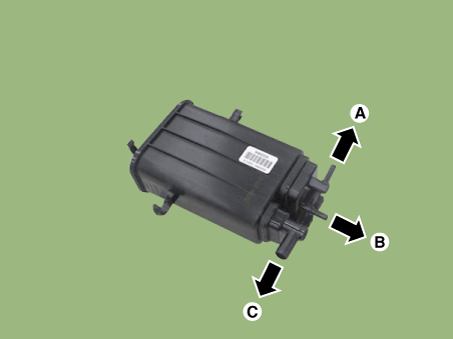

Check for the following items visually.
A: Canister ↔ Fuel Tank B: Canister ↔ Intake Manifold C: Canister ↔ Atmosphere |
| Installation |
| 1. |
Install in the reverse order of removal. |
