Kia Rio: Manual Transaxle Control System / Control Shaft Complete
Kia Rio 2017-2020 YB Service Manual / Manual Transaxle System / Manual Transaxle Control System / Control Shaft Complete
Components and components location

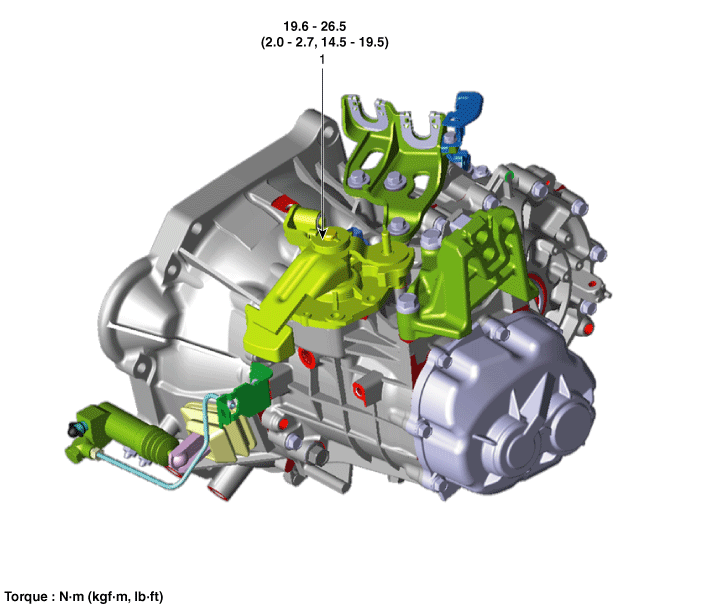

| Components Location |
1. Control shaft complete
Repair procedures
| Removal |
| 1. |
Shift the gear to "neutral". |
| 2. |
Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") |
| 3. |
Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |
| 4. |

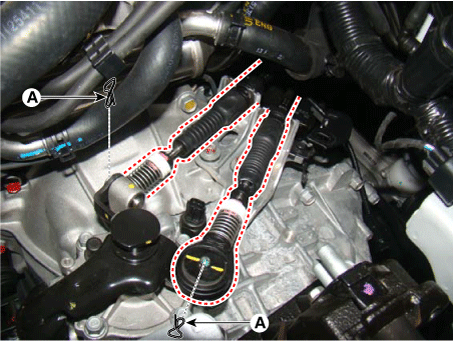

Remove the control cable from the control shaft after remove the pins (A).
|
| 5. |

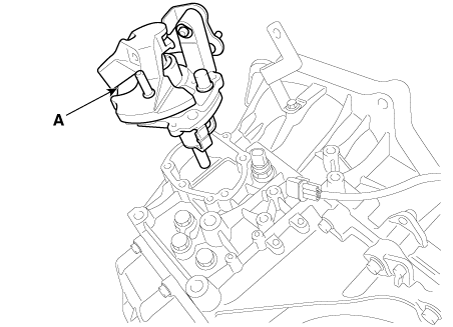

Remove the control shaft complete (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
|
Shift Lever
Components and components location
Components
1. Knob
2. boots
3. Shift lever assembly
4. Retainer
5. Shift cable
6. Select cable
...
