Kia Rio: Cylinder Head Assembly / Cylinder Head Cover
Components and components location
1. Cylinder head cover
|
2. Cylider head cover gasket
|
Repair procedures
| • |
Use fender covers to avoid damaging painted surfaces.
|
| • |
To avoid damage, unplug the wiring connectors carefully while
holding the connector portion.
|
|
| • |
Mark all wiring and hoses to avoid misconnection.
|
| • |
Turn the crankshaft pulley so that the No.1 piston is at top
dead center.
|
|
| 1. |
Disconnect the battery negative terminal.
|
| 2. |
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
|
| 3. |

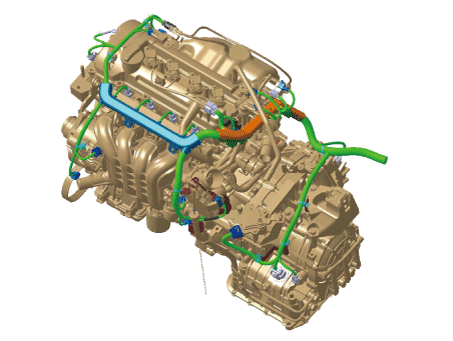

Disconnect the wiring connectors and harness clamps and remove the connector
brackets around the cylinder head cover.
|
| 4. |
Remove the ignition coils.
(Refer to Engine Electrical System - “Ignition Coil”)
|
| 5. |

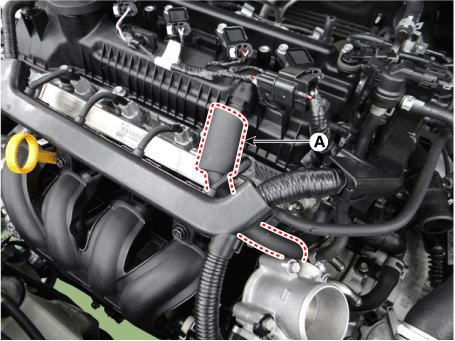

Disconnect the positive crankcase ventilation (PCV) hose (A).
|
| 6. |

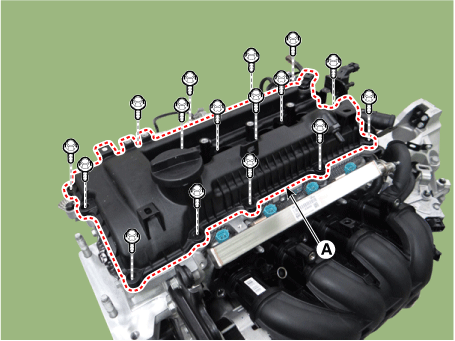

Remove the cylinder head cover (A).
|
| 1. |
Install the cylinder head cover.
| (1) |
Install new cylinder head cover gasket (A) on the cylinder head
cover.
|
Do not reuse the cylinder head cover gasket.
|
|
| (2) |

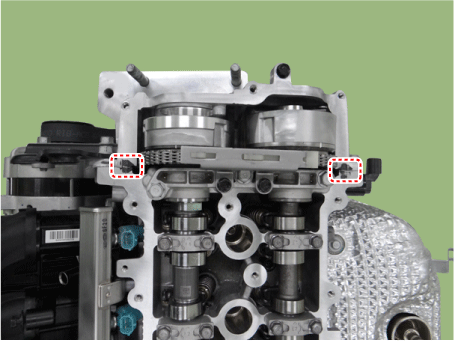

The hardening sealant located on the upper area between timing
chain cover and cylinder head should be removed before assembling
cylinder head cover.
|
| (3) |
After applying sealant, it should be assembled within 5 minutes.
|
Bead width : 2.0 - 3.0 mm (0.08 - 0.12 in.)
|
|
| (4) |

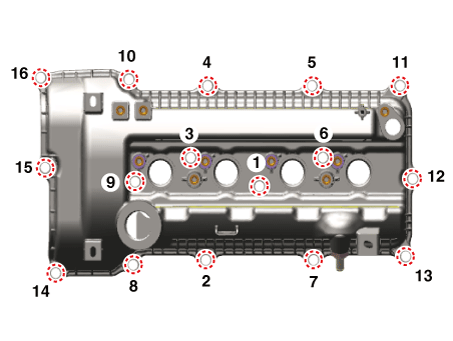

Install the cylinder head cover bolts as following method with
two steps.
|
Tightening torque :
1st step : 3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3
lb·ft)
2st step : 7.8 - 9.8 N·m (0.8 - 1.0 kgf·m, 5.8 - 7.2
lb·ft)
|
|
|
| 2. |
Install the other parts in the reverse order of removal.
|
