Kia Rio: Engine And Transaxle Assembly / Engine Room Under Cover
Kia Rio 2017-2020 YB Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Room Under Cover
Repair procedures
| Removal and Installation |
| 1. |

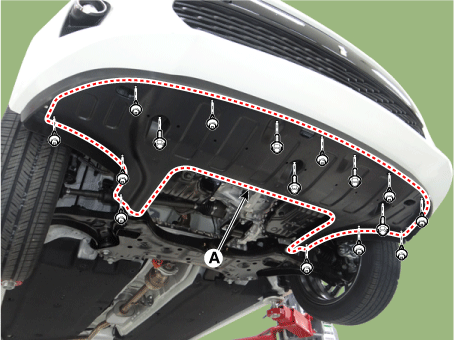

Remove the engine room under cover (A).
|
| 2. |
Install in the reverse order of removal. |
Engine Cover
Repair procedures
Removal and Installation
1.
Remove the engine cover (A).
Tightening torque :
6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·f ...
Engine Mounting
Components and components location
Components
1. Engine mounting bracket
2. Engine mounting support bracket
3. Roll rod bracket
4. Transaxle mounting brac ...
