Kia Rio: Lighting System / High Mounted Stop Lamp
Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Lighting System / High Mounted Stop Lamp
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Open the tailgate. |
| 3. |

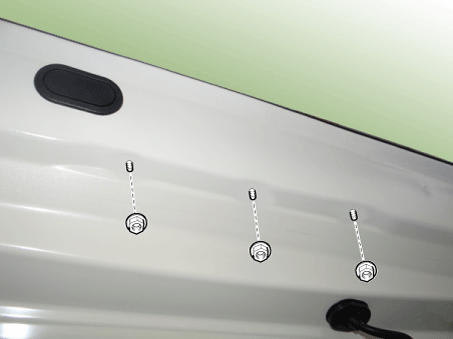

Remove the high mounted stop lamp (A) after loosening the mounting nuts.
|
| 4. |

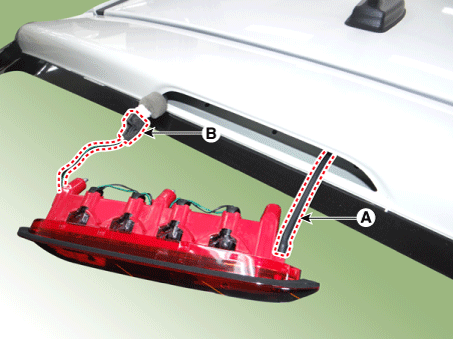

Disconnect the washer nozzle (A) and high mounted stop lamp connector (B).
|
| Installation |
| 1. |
Connect the washer nozzle and high mounted stop lamp connector. |
| 2. |
Install the high mounted stop lamp. |
| 3. |
Connect the negative (-) battery terminal. |
