Kia Rio: Ignition System / Ignition Coil
Specifications
Item
|
Specification
|
Rated Voltage (V)
|
12
|
Operation Voltage (V)
|
5 - 16
|
Item
|
Specification
|
Engine Speed (RPM)
|
1000
|
2000
|
3000
|
4000
|
5000
|
6000
|
Dwell Time (ms)
|
3.82
|
2.61
|
2.27
|
1.93
|
1.79
|
1.6
|
Secondary Coil Voltage (kV)
|
32 ↑
|
32 ↑
|
31 ↑
|
30 ↑
|
29 ↑
|
27 ↑
|
Description and operation
An ignition coil is an induction coil in an engine's ignition system which transforms
the battery's low voltage to the high voltage needed to create an electric spark
in the spark plugs to ignite the fuel. Coils have an internal resistor while others
rely on a resistor wire or an external resistor to limit the current flowing into
the coil from the battery 12 V supply.

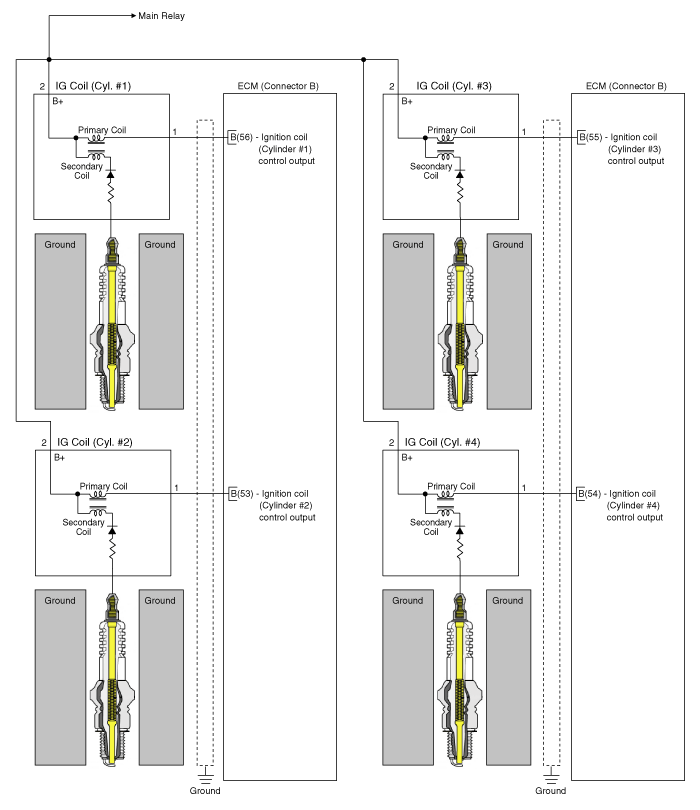

Schematic diagrams
Repair procedures
| 1. |
Disconnect the battery nagative terminal.
|
| 2. |
Remove the engine cover.
|
| 3. |

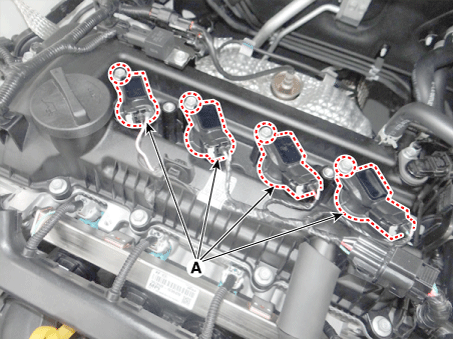

Remove the ignition coil (A) after loosening the mounting bolts.
|
Ignition coil mounting bolt:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 Ib·ft)
|
| •
|

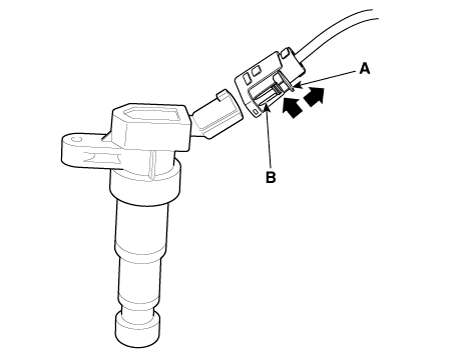

When removing the ignition coil connector, pull the lock
pin (A) and push the clip (B).
|
|
|
| 1. |
Install in the reverse order of removal.
|
| 1. |

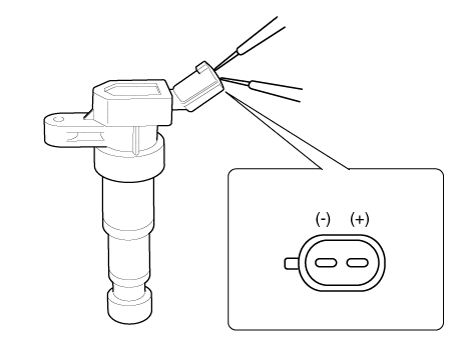

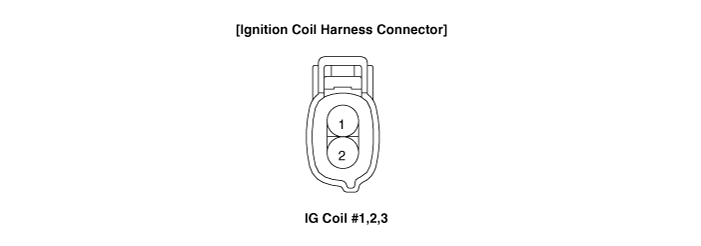

Measure the primary coil resistance between terminal 1 and 2.
|
Standard value: 0.74Ω ± 10% [20°C (68°F)]
|
|
