Kia Rio: ISG (Idle Stop & Go) System / ISG OFF switch
Kia Rio 2017-2020 YB Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / ISG OFF switch
Components and components location
| Components |

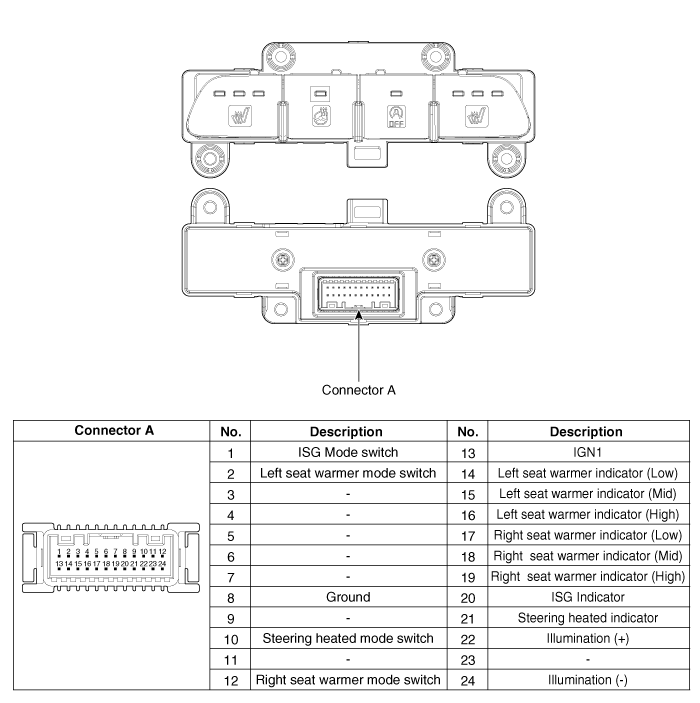

Description and operation
| Description |
The ISG OFF switch on the floor console can be used to deactivate the ISG function.
Schematic diagrams

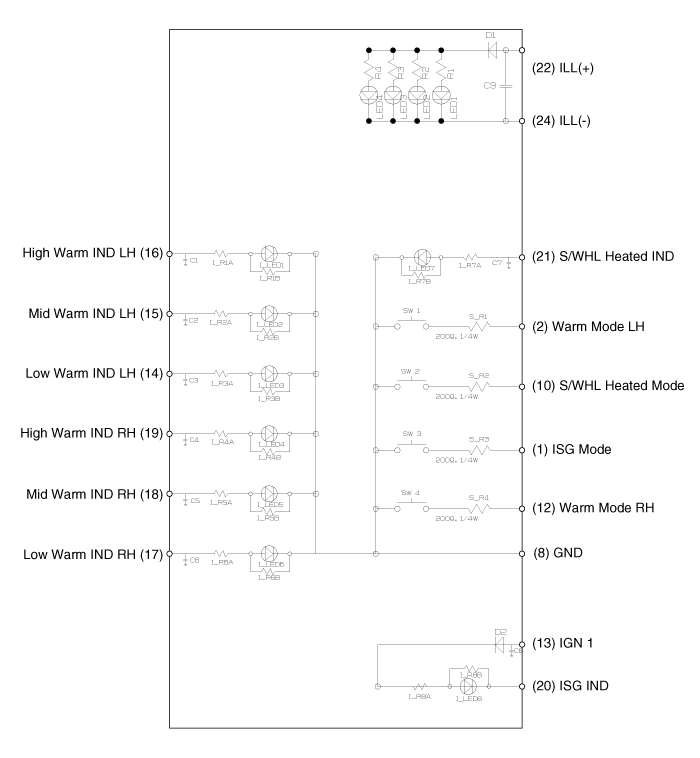

| Circuit Diagram |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the front console upper cover. (Refer to Body - "Floor Console Assembly") |
| 3. |

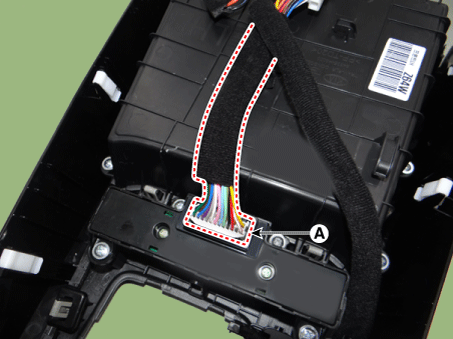

Disconnect the front console upper cover switch connector (A).
|
| 4. |

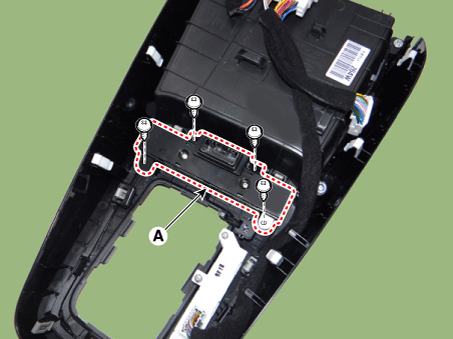

Remove the front console upper cover switch (A) after loosening the mounting screws.
|
| Installation |
| 1. |
Install the front console upper cover switch. |
| 2. |
Connect the front console upper cover switch connector. |
| 3. |
Install the front console upper cover. |
| 4. |
Connect the negative (-) battery terminal. |
| Inspection |
| 1. |
Remove the ISG switch. (Refer to ISG System - "ISG Swtich") |
| 2. |
Using an ohmmeter, measure the resistance between switch terminals. |
| 3. |
If there is no continuity, replace the ISG OFF switch.
|
