Kia Rio: Fuses And Relays / Junction Box (Engine Compartment)

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Fuses And Relays / Junction Box (Engine Compartment)

Components and components location

Component Location

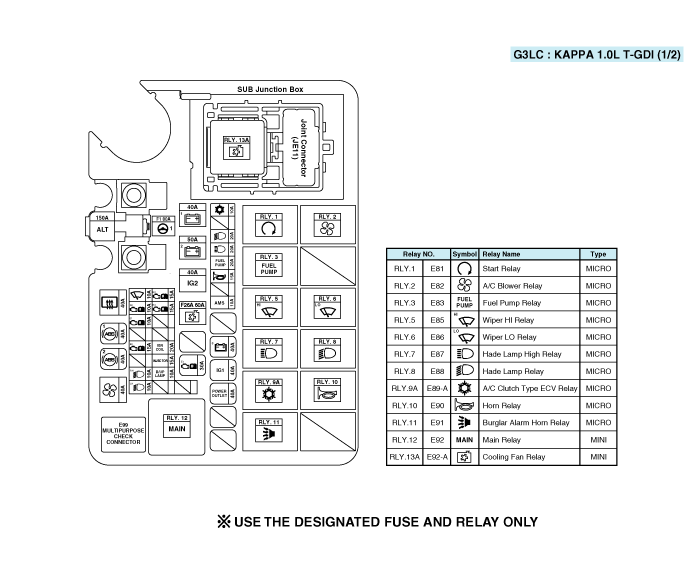

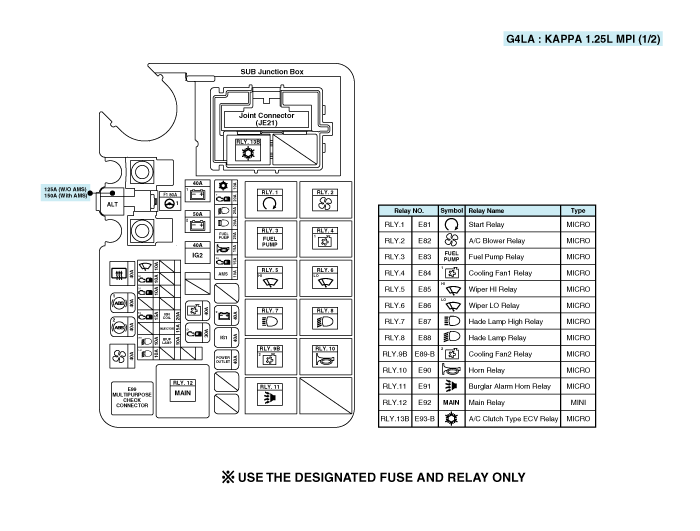

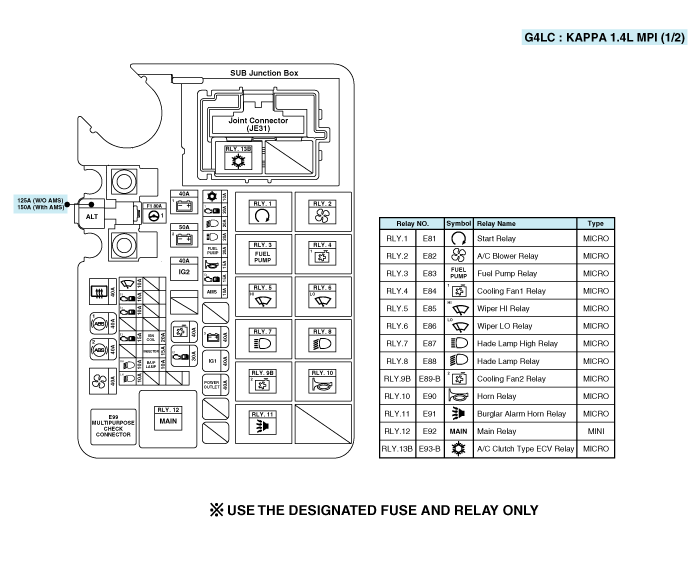

E/R Junction Block

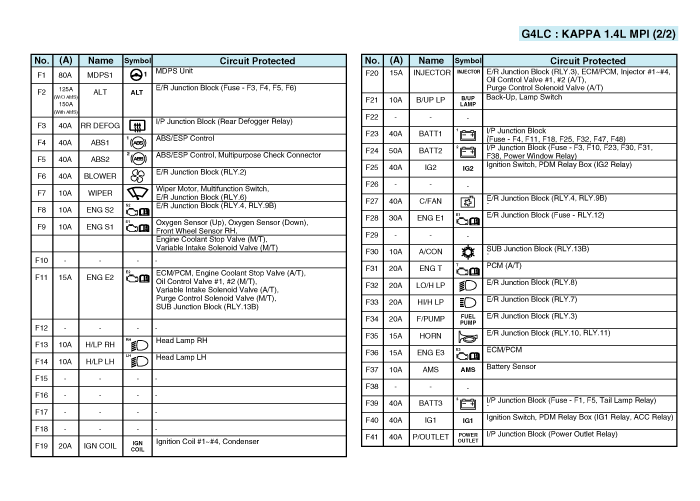

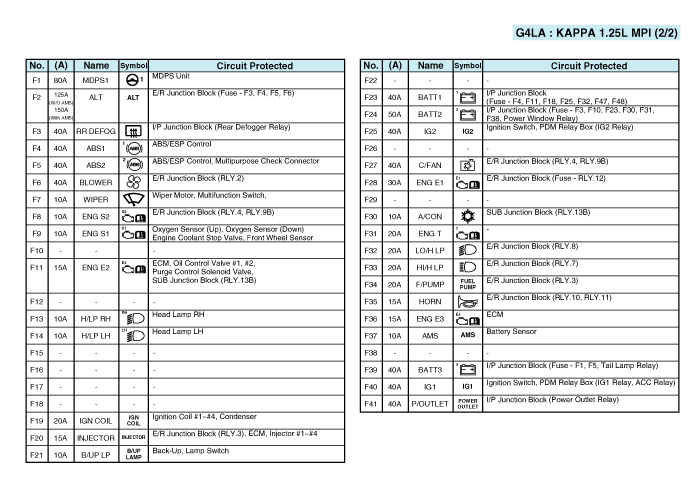

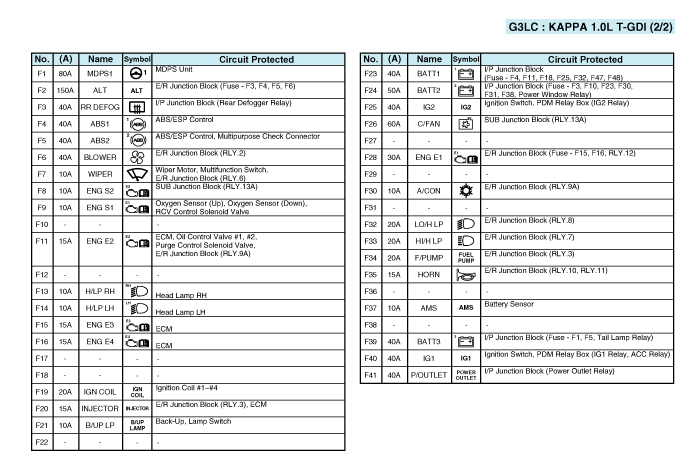

Circuit (PCB Block)

E/R Junction Block

Circuit (PCB Block)

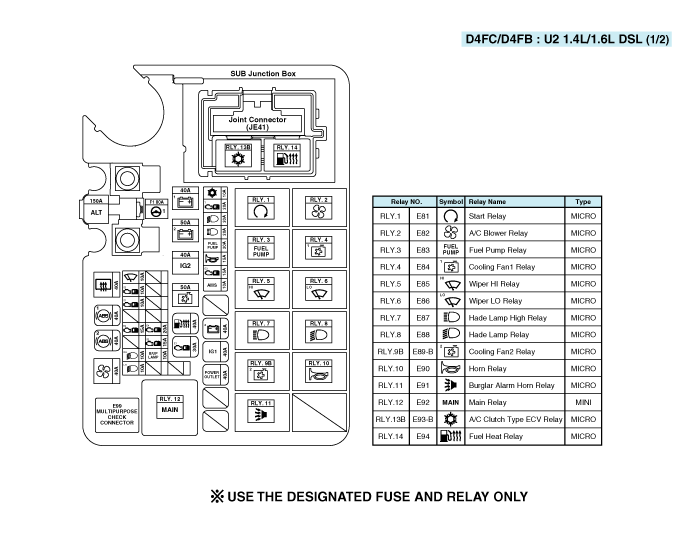

E/R Junction Block

Circuit (PCB Block)

E/R Junction Block

Circuit (PCB Block)

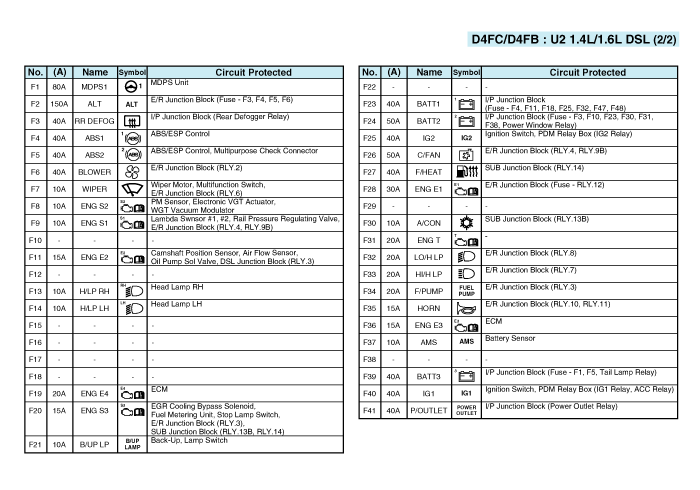

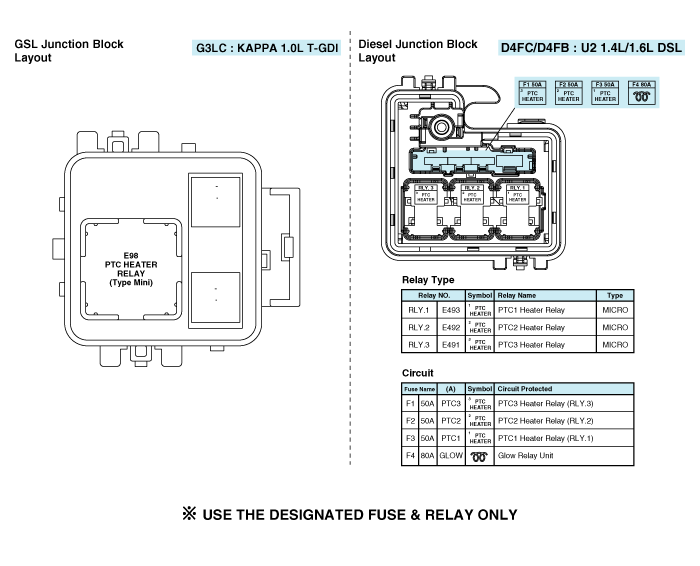

Gasoline / Diesel Junction Block

Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

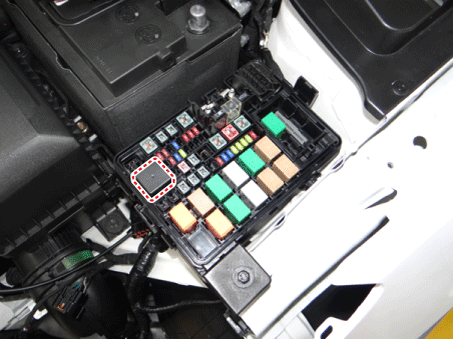

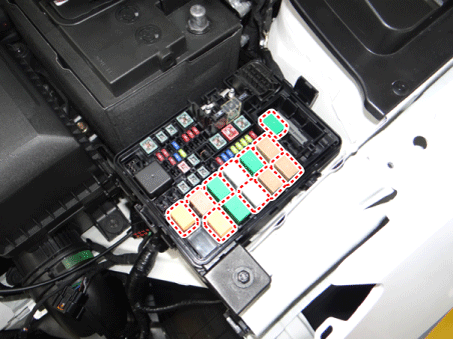

2.	Pull out the relay from the engine compartment relay block.

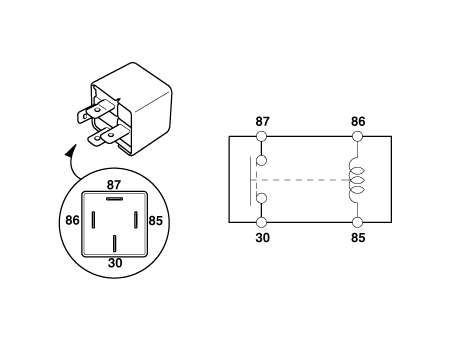

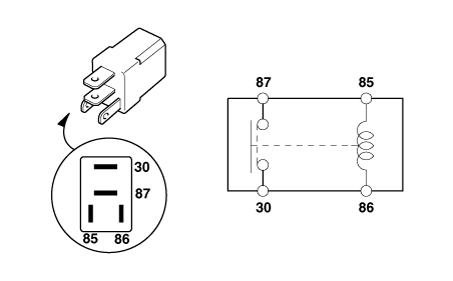

Power Relay (Type A)

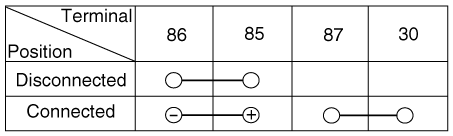

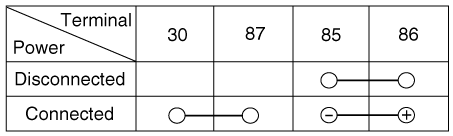

Check for continuity between the terminals.

1.	After supplying power to between No. 85 and 86 power relay terminals, check that there is continuity between No. 30 and 87 terminals.

2.	After disconnecting power between No. 85 and 86 power relay terminals, check that there is no continuity between No. 30 and 87 terminals. Engine Room Relay Block

Power Relay (Type B)

Check for continuity between the terminals.

1.	After supplying power to between No. 85 and 86 power relay terminals, check that there is continuity between No. 30 and 87 terminals.

2.	After disconnecting power between No. 85 and 86 power relay terminals, check that there is no continuity between No. 30 and 87 terminals.

Fuse

1.	Check that the fuse holders are loosely held and that the fuses are securely fixed by the holders.

2.	Check that each fuse circuit has the exact fuse capacity.

Check the fuses for any damage.

•	If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always identify the cause of the blown fuse and completely eliminate the problem before installing a new fuse.

Multi Fuse

1.	Disconnect the negative (-) battery terminal.

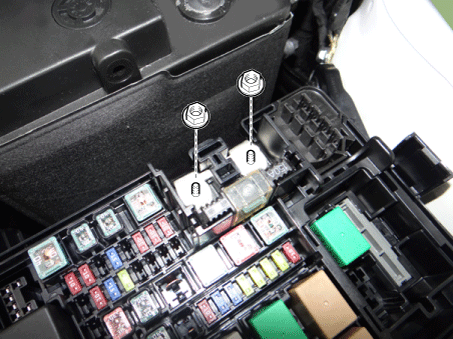

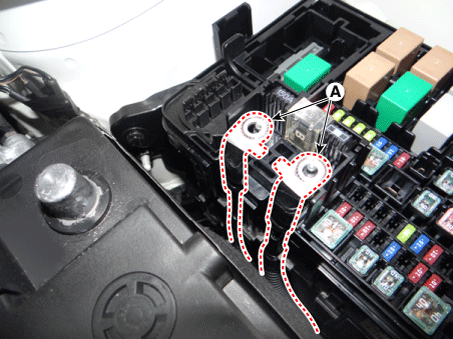

2.	Remove the power cable terminals (A) after loosening the nuts from the engine room fuse & relay box.

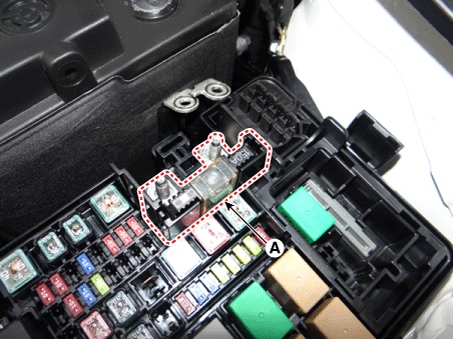

3.	Remove the multi fuse (A) after pushing the hook.

•	The entire multi fuse (A) has to be replaced even if only one fuse is damaged.

•	When replacing it, refer to “the Engine compartment- component location” diagram to check fuse capacities and circuit arrangement.

•	Use the multi fuse of the exact fuse capacity for each circuit.
