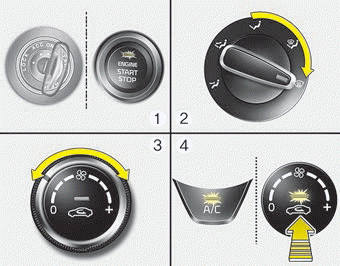

1. Turn the ignition switch to the ON position.
2. Turn the mode selection knob to the defrost position (
).
3. Select any fan speed except “0” position.
4. While pressing the air conditioning button (A/C), press the air intake control
button (
) at least 5 times within 3
seconds.
The indicator light in the air intake control button will blink 3 times with 0.5 second of interval. It indicates that the defogging logic is canceled or returned to the programmed status.
If the battery has been discharged or disconnected, it resets to the defog logic status.
Defogging Logic
To reduce the probability of fogging up inside of the windshield, the air intake
or air conditioning are controlled automatically according to certain conditions
such as or
position. Logic can ...
Automatic climate control system
1. Turn the ignition switch to the ON position.
2. Select the defroster position before pressing the defroster button ().
3. While pressing the air conditioning button (A/C), press the air intake ...
