Kia Rio: Brake System / Master Cylinder

Kia Rio 2017-2020 YB Service Manual / Brake System / Brake System / Master Cylinder

Components and components location

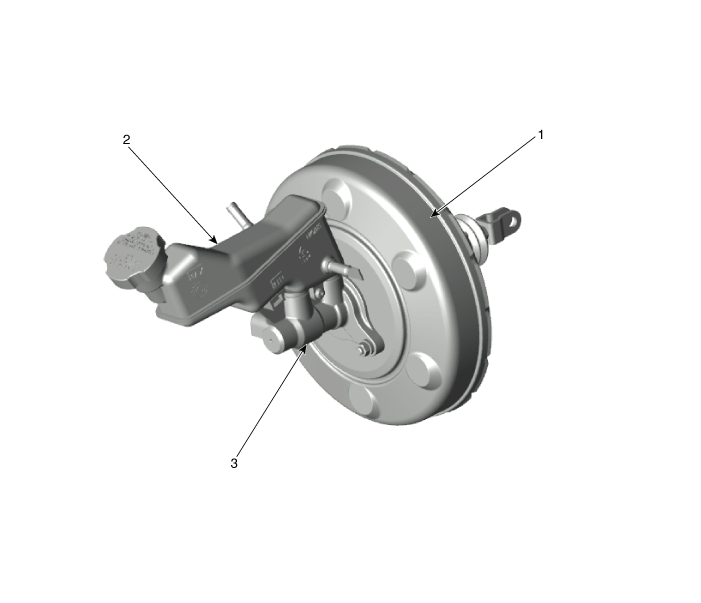

Components

1. Brake booster assembly
2. Reservoir

3. Master cylinder

Repair procedures

Removal

1.	Remove the battery and battery tray. D 1.4 U2 TCI (Refer to Engine Electrical System - "Battery") G 1.0 T-GDI (Refer to Engine Electrical System - "Battery") G 1.2 MPI (Refer to Engine Electrical System - "Battery") G 1.4 MPI (Refer to Engine Electrical System - "Battery")

2.	Remove the air cleaner assembly. D 1.4 U2 TCI (Refer to Engine Mechanical System - "Air cleaner") G 1.0 T-GDI (Refer to Engine Mechanical System - "Air cleaner") G 1.2 MPI (Refer to Engine Mechanical System - "Air cleaner") G 1.4 MPI (Refer to Engine Mechanical System - "Air cleaner")

Remove the brake fluid from the master cylinder reservoir with a syringe.

Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.

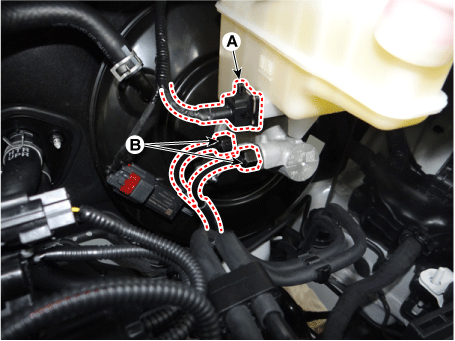

Disconnect the brake fluid level switch connector (A), and disconnect the brake tube (B) from the master cylinder by loosening the tube flare nut.

Tightening torque:

ABS : 13.7 - 16.7 N·m (1.4 - 1.7 kgf·m, 10.1 - 12.3 lb·ft)

ESC : 18.6 - 22.6 N·m (1.9 - 2.3 kgf·m, 13.7 - 16.6 lb·ft)

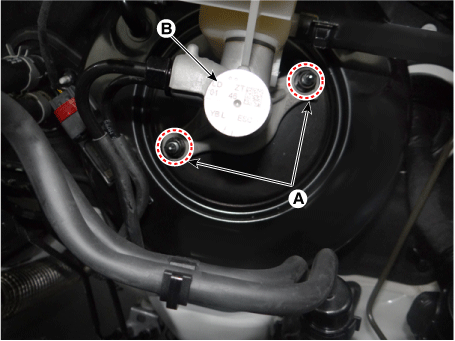

Remove the master cylinder (B) from the brake booster after loosening the mounting nuts (A).

Tightening torque:

9.8 - 15.7 N·m (1.0 - 1.6 kgf·m, 7.2 - 11.6 lb·ft)

Installation

1.	Install in the reverse order of removal.

2.	After installation, bleed the brake system. (Refer to Brake system - "Brake System")
