Kia Rio: AVN System / Mic

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / AVN System / Mic
Repair procedures
Inspection
1.

Disconnector the negative (-) battery terminal.

2.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

3.

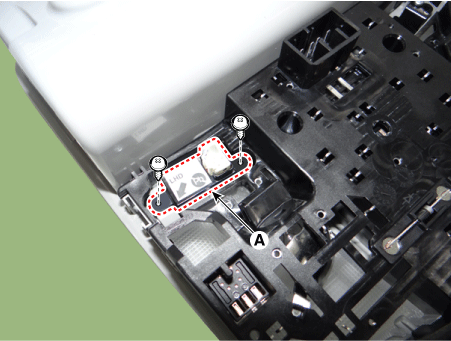

Remove the hands free mic (A) after loosening the mounting screws.

4.

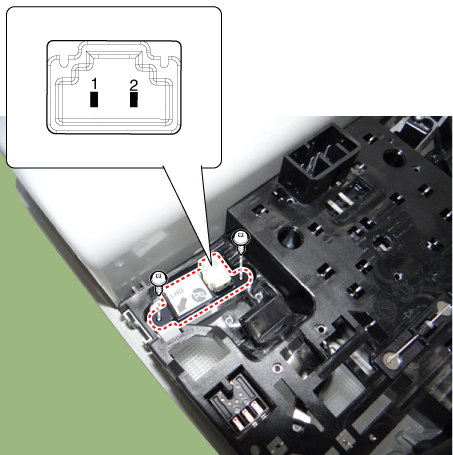

Check tshe continuity of between terminals.
