Kia Rio: Hydraulic System / Oil Filter
Repair procedures
| Removal |
| 1. |
Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover"). |
| 2. |

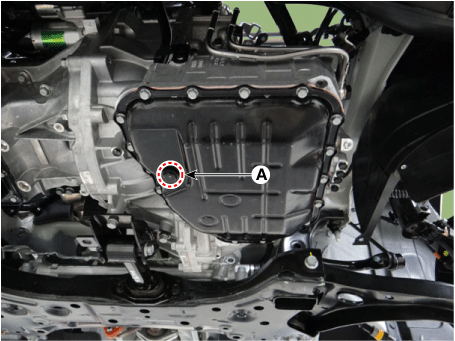

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
|
| 3. |
Remove the valve body cover (A) using the SST (09215-3C000) after loosening the bolts.
|
| 4. |

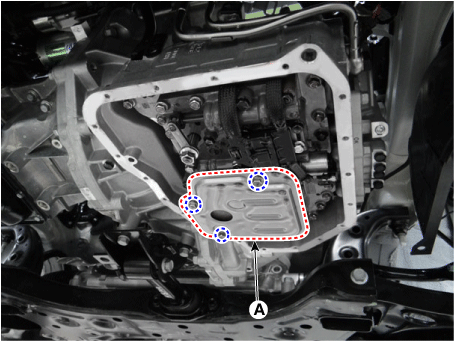

Remove the oil filter (A) after loosening the bolts.
|
| Installation |
| 1. |
Install the oil filter (A).
|
| 2. |

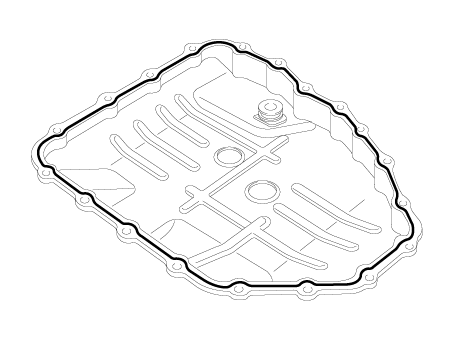

Apply liquid gasket with 0.10 2in (2.6 mm) thickness without a pause as shown in the illustration.
|
| 3. |
Install the valve body cover (A).
|
| 4. |
Refill the automatic transaxle with fluid. (Refer to Hydraulic System - "Fluid") |
| 5. |
Install the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover"). |
