Kia Rio: Rear Parking Assist System / Parking Assist Sensor
Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Rear Parking Assist System / Parking Assist Sensor

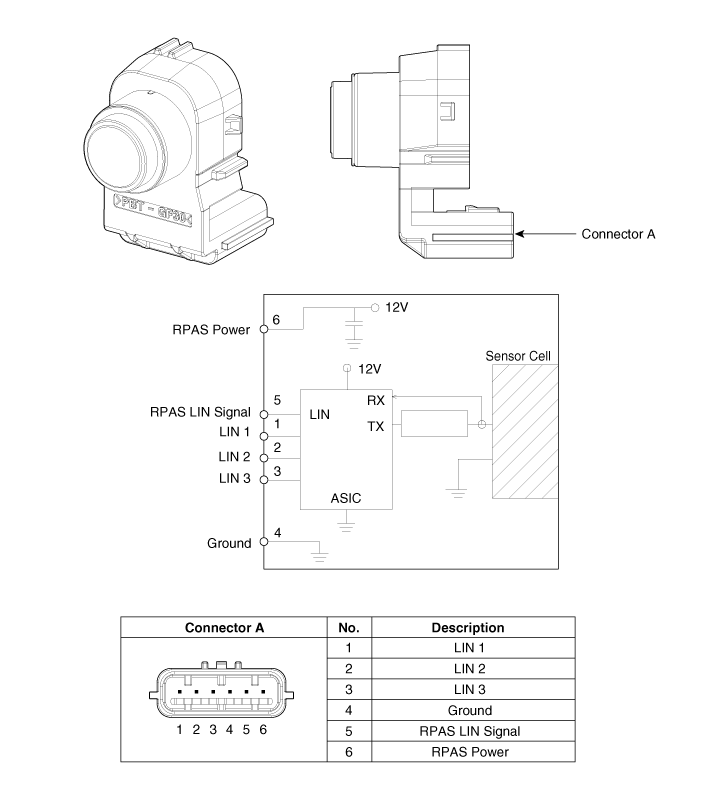

Components and components location
| Components |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the rear bumper assembly. (Refer to Body - "Rear Bumper Assembly") |
| 3. |

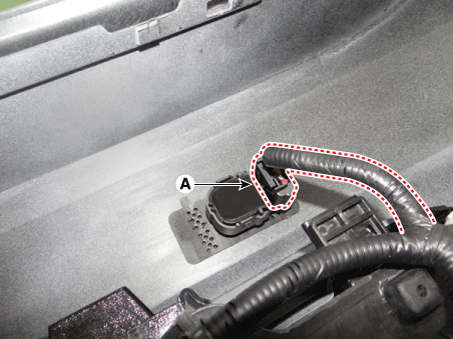

Disconnect the connector (A) from the ultrasonic sensor.
|
| 4. |

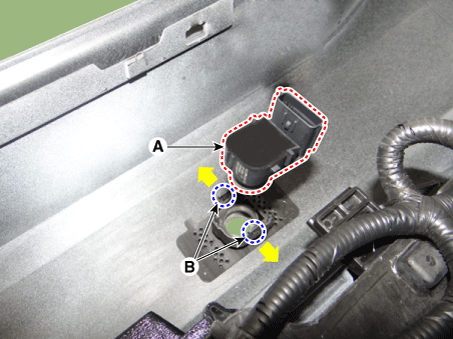

Pull out ths ultrasonic sensor (A) by opening the sensor holder (B) out.
|
| Installation |
| 1. |
Install the ultrasonic sensor and connector. |
| 2. |
Install the rear bumper assembly. |
| 3. |
Connect the negative (-) battery terminal. |
