Kia Rio: Power Door Mirrors / Power Door Mirror Switch
Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch
Components and components location
| Component |

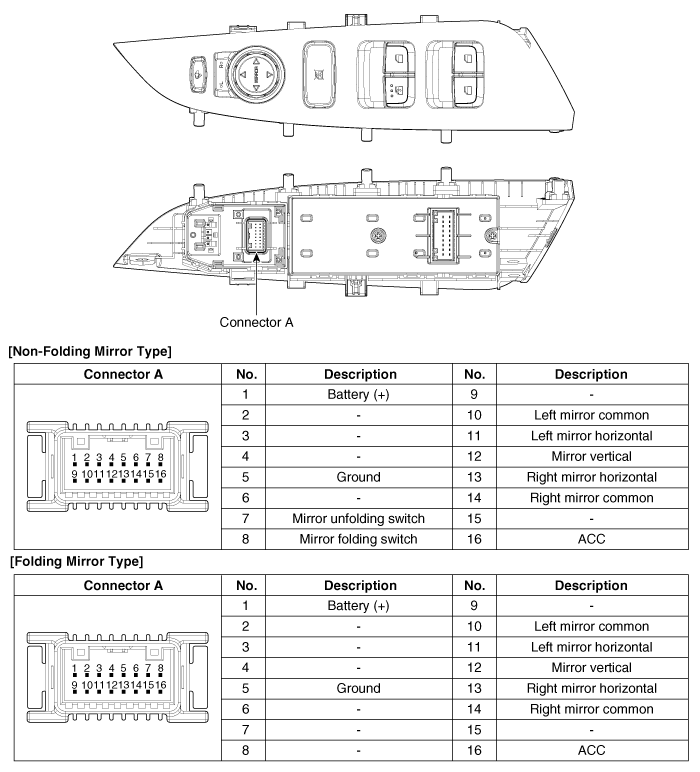

| Driver Power Window Switch |
Schematic diagrams

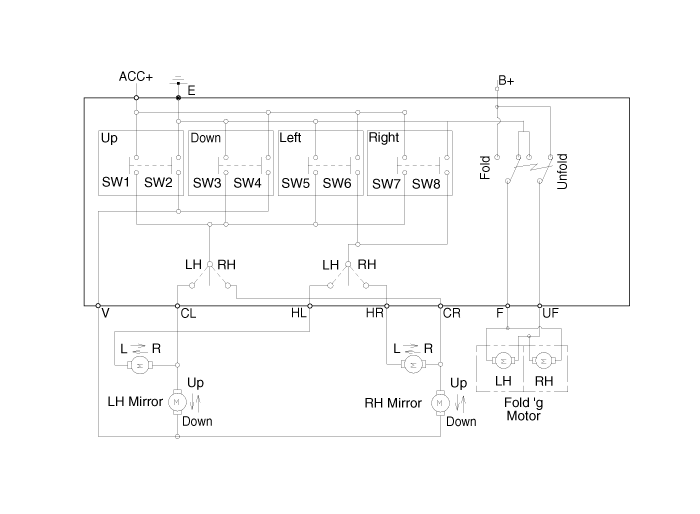

| Circuit Diagram |
| [Non-Folding Mirror Type] |
| [Folding Mirror Type] |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the front left door trim. (Refer to Body - "Front Door Trim") |
| 3. |

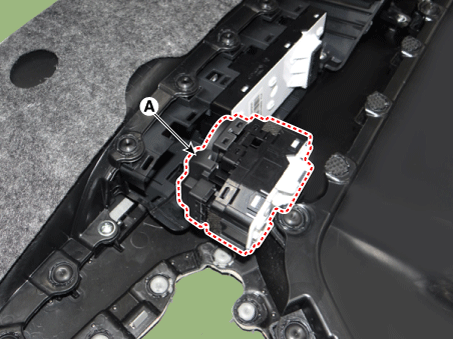

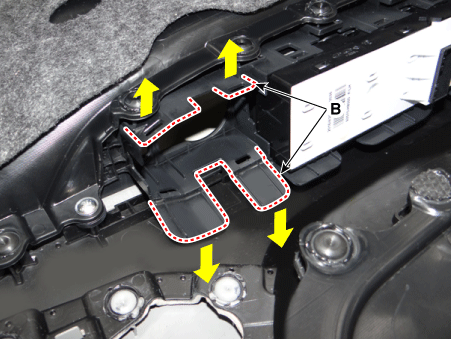

Remove the power mirror switch assembly (A) by pulling out both ends of the switch holders (B).
|
| Installation |
| 1. |
Install the power mirror switch. |
| 2. |
Install the front door trim after connecting the connector. |
| 3. |
Connect the negative (-) battery terminal. |
| Inspection |
| 1. |
Remove the front left door trim. (Refer to Body - "Front Door Trim") |
| 2. |

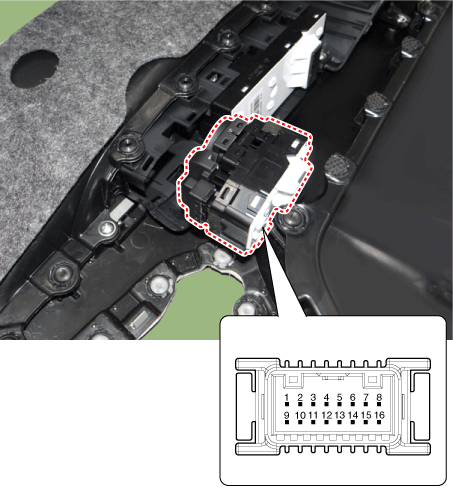

Remove the power mirror switch (A) from the door trim.
|
| 3. |

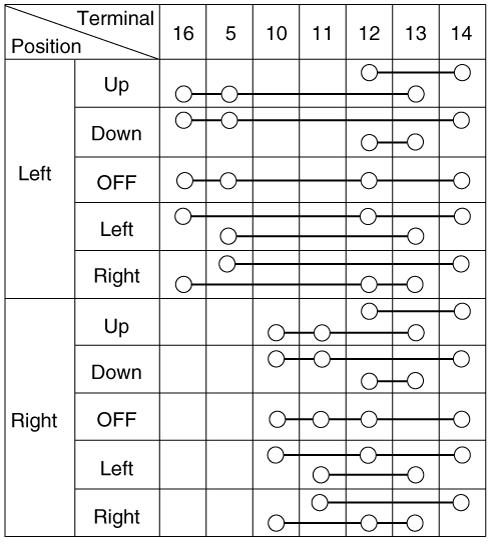

Check for continuity between the terminals in each switch position according to the table. [Power Mirror Switch]

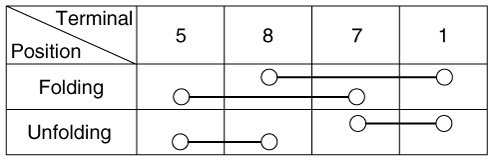

[Power Folding Mirror Switch]
|
Power Door Mirrors
Components and components location
Component Location
1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
...
Power Door Mirror Actuator
Components and components location
Components
1. Side repeater lamp
Repair procedures
Inspection
1.
Disconnect the negative ...
