Kia Rio: Driveshaft and axle / Rear Hub - Carrier

Kia Rio 2017-2020 YB Service Manual / Driveshaft and axle / Rear Hub - Carrier

Components and components location

Components

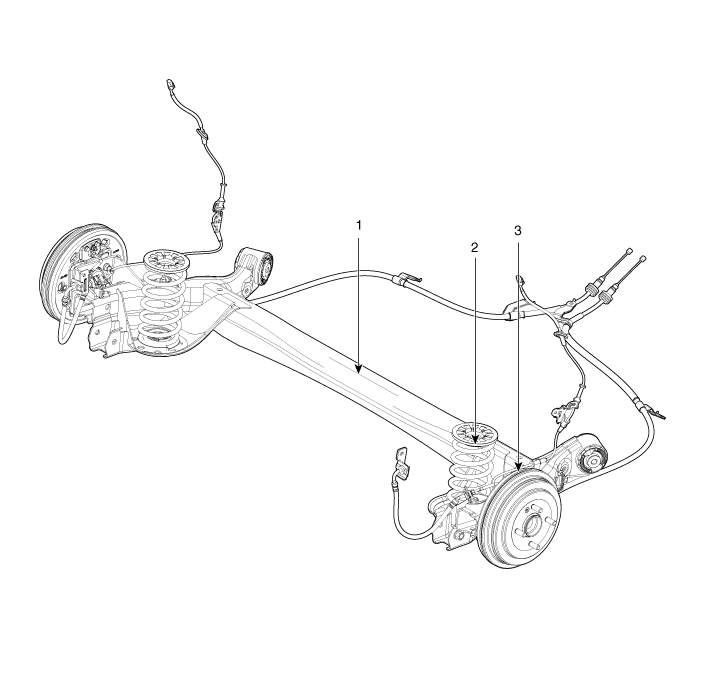

[Drum Type]

1. Torsion beam axle
2. Rear spring

3. Rear drum brake disc

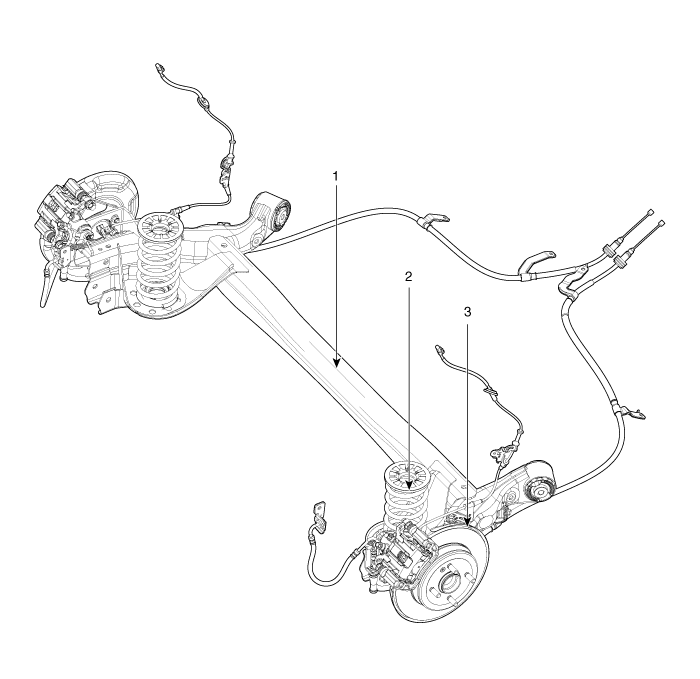

[Disc Type]

1. Torsion beam axle
2. Rear spring

3. Rear brake disc

Repair procedures

Removal

[Disc Type]

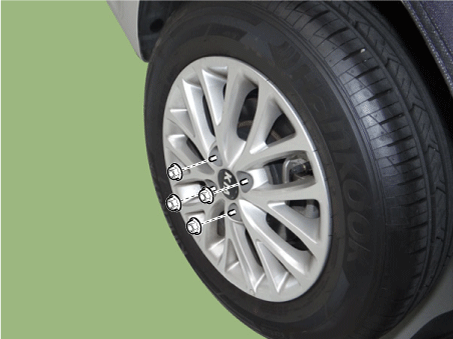

Remove the wheel and tire.

Tightening torque:

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

Be careful not to damage to the wheel nuts when removing the wheel and tire.

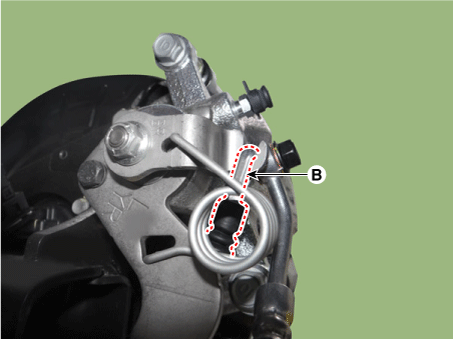

2.	Remove the brake clip (A) and parking brake cable (B).

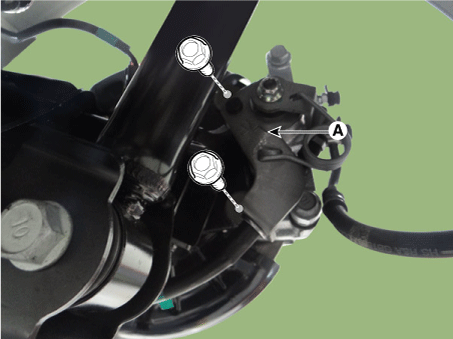

Remove the rear brake caliper assembly (A).

Tightening torque:

78.4 - 98.0 N·m (8.0 - 10.0 kgf·m, 57.8 - 72.3 lb·ft)

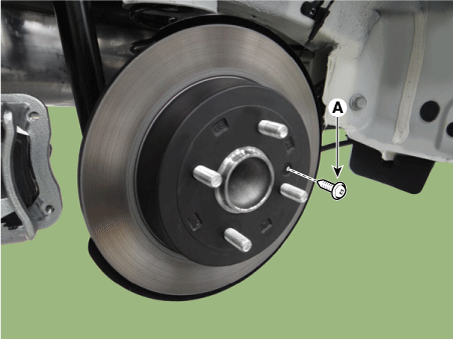

Loosen the mounting screw and the brake disc (A).

Tightening torque:

4.9 - 5.9 N·m (0.5 - 0.6 kgf·m, 3.6 - 4.3 lb·ft)

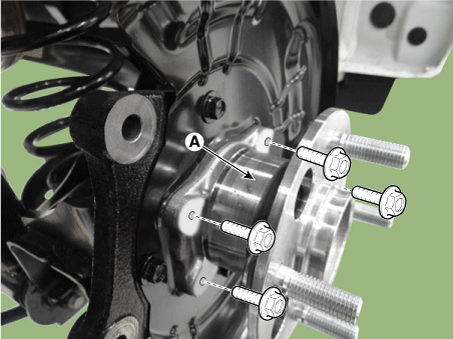

Loosen the bolts and then remove the hub (A) from the torsion beam axle.

Tightening torque:

49.0 - 58.8 N·m (5.0 - 6.0 kgf·m, 36.1 - 43.3 lb·ft)

6.	Install in the reverse order of removal.

[Drum Type]

Remove the wheel and tire.

Tightening torque:

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

Be careful not to damage to the wheel nuts when removing the wheel and tire.

Loosen the mounting screw and the brake disc (A).

Tightening torque:

4.9 - 5.9 N·m (0.5 - 0.6 kgf·m, 3.6 - 4.3 lb·ft)

3.	Disconnect the wheel speed sensor.

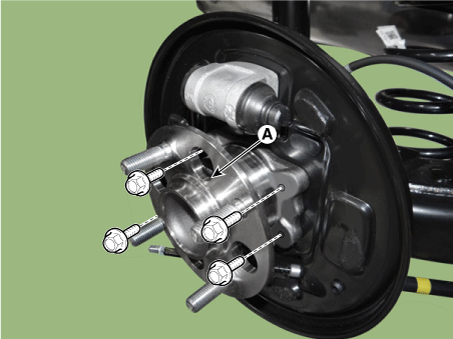

Loosen the hub mounting bolt and then remove the hub (A) from the torsion beam.

Tightening torque:

49.0 - 58.8 N·m (5.0 - 6.0 kgf·m, 36.2 - 43.4 lb·ft)

5.	Install in the reverse order of removal.

Inspection

1.	Check the hub for cracks and the splines for wear.

2.	Check the brake disc for scoring and damage.

3.	Check the rear axle carrier for cracks

4.	Check the bearing for cracks or damage.
