Kia Rio: Wipers and washers / Rear window wiper and washer switch (for 5 door)
Kia Rio 2017-2020 YB Owners Manual / Features of your vehicle / Wipers and washers / Rear window wiper and washer switch (for 5 door)
■ Type A
■ Type B

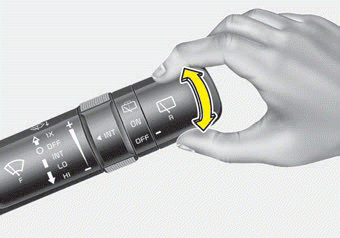

The rear window wiper and washer switch is located at the end of the wiper and washer switch lever. Turn the switch to operate the rear wiper and washer.
ON - Normal wiper operation
(1) HI - High wiper speed
(2) LO - Low wiper speed
(3) OFF - Wiper is not in operation
■ Type A
■ Type B

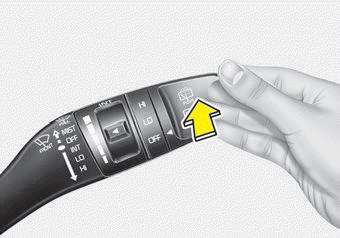

Push the lever away from you or turn the wiper lever switch upwards fully to spray rear washer fluid and to run the rear wipers 1~3 cycle. The spray and wiper operation will continue until you release the lever.
Windshield washers (front)
■ Type A
■ Type B
In the OFF position, pull the lever gently toward you to spray washer fluid on
the windshield and to run the wipers 1-3 cycles.
Use this function when the windshield is ...
Interior light
Do not use the interior lights for extended periods when the engine is not running
as this may cause battery discharge.
WARNING - Interior light
Do not use the interior lights when driving in the ...
