Kia Rio: Body Electrical System / Rear Wiper/Washer
Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Rear Wiper/Washer
Components and components location

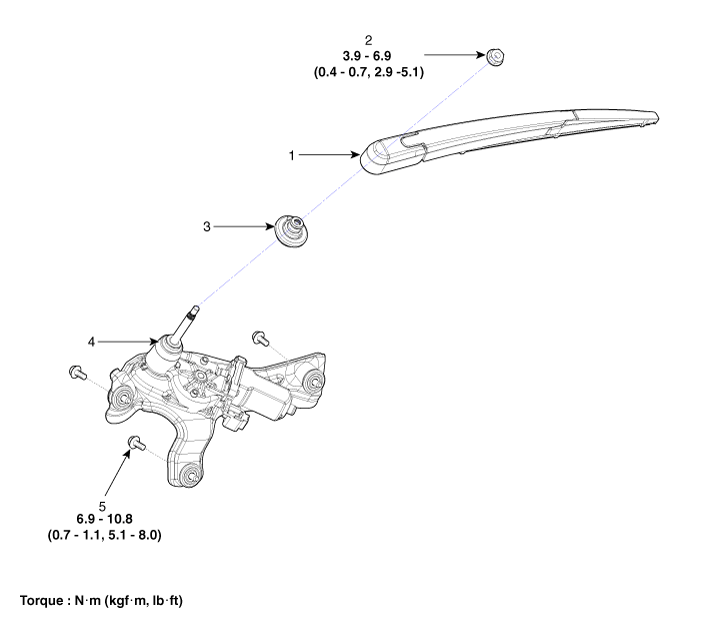

| Component Location |
| 1 . Rear wiper arm & blade
2 . Rear wiper arm nut 3 . Rear wiper grommet |
4 . Rear wiper motor assembly
5 . Rear wiper motor bolt |
Rear Glass Defogger Switch
Repair procedures
Inspection
1.
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (KDS/GDS).
The diagnostic syst ...
Rear Wiper Motor
Repair procedures
Inspection
Rear Wiper Motor
1.
Remove the connector from the rear wiper motor.
2.
Connect positive (+) battery cables to terminal ...
