Kia Rio: Towing / Removable towing hook (front)
Kia Rio 2017-2020 YB Owners Manual / What to do in an emergency / Towing / Removable towing hook (front)

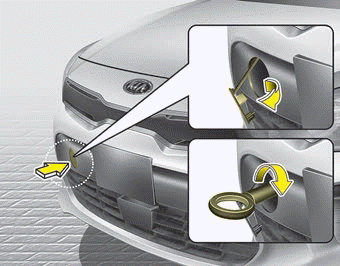

1. Remove the towing hook from the tool case located in the trunk/liftgate.
2. Remove the hole cover pressing the lower part of the cover on the front bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully secured.
4. Remove the towing hook and install the cover after use.
Towing
Towing service
If emergency towing is necessary, we recommend having it done by an authorized
Kia dealer or a commercial tow-truck service. Proper lifting and towing procedures
are necessary to ...
Emergency towing
• Front
• Rear (4 Door)
• Rear (5 Door)
If towing is necessary, we recommend you have it done by an authorized Kia
dealer or a commercial tow truck service.
If towing service is not ...
