Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Audio / Roof Antenna
Components and components location
Components
[Roof Antenna (Radio)]

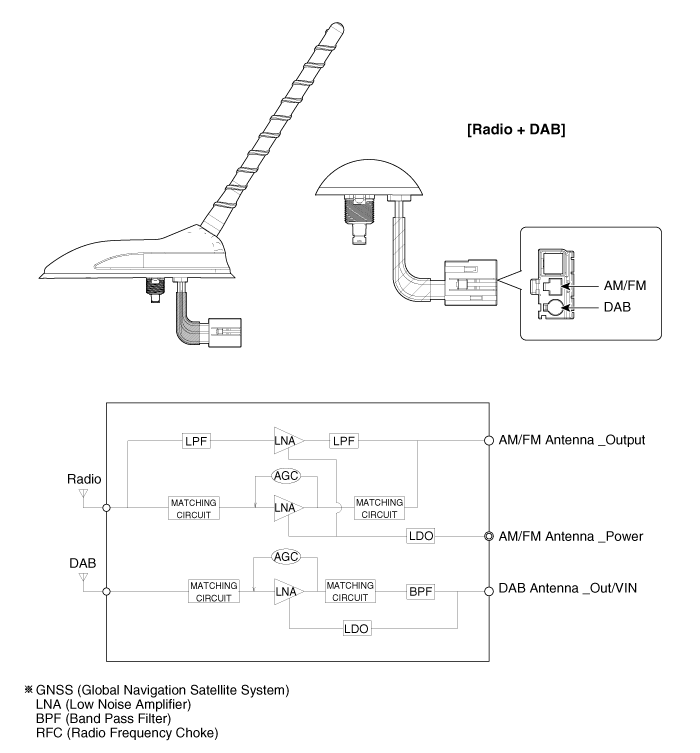

[Roof Antenna (Radio + DAB)]

Repair procedures
Removal

Roof antenna

1.

Disconnect the negative (-) battery terminal.

2.

Remove the roof trim assembly.

(Refer to Body - "Roof Trim Assembly")

3.

Disconnect the roof antenna power connector (A).

4.

Remove the roof antenna (B) after loosening a nut (A).

Installation

Roof anenna

1.

Install the roof antenna.

2.

Connect the roof antenna power connector and radio antenna connectors.

3.

Install the roof trim assembly.

4.

Connect the negative (-) battery terminal.



Make sure that the cable and connector are plugged in properly.

Check the audio system for normal operation.

Inspection

Antenna Cable

1.

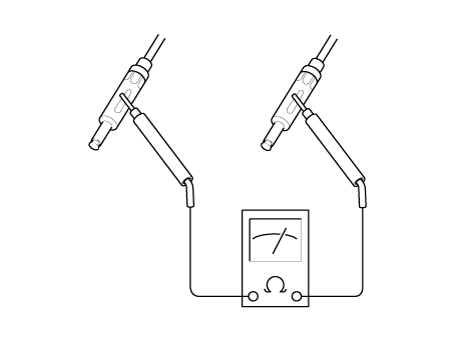

Check for continuity between the center poles of antenna cable.

2.

Check for continuity between the outer poles of antenna cable. There should be continuity.

3.

If there is no continuity, replace the antenna cable.

4.

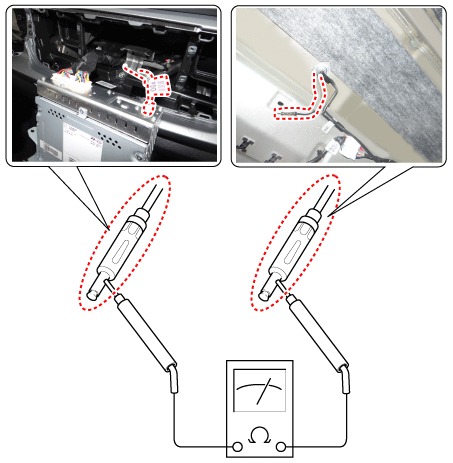

Check for continuity between the center pole (A) and outer pole (B) of antenna cable. There should be no continuity.

5.

If there is continuity, replace the antenna cable.

Speakers
