Kia Rio: Light bulbs / Room lamp bulb replacement
WARNING - Interior lamps
Prior to working on the Interior lamps, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.

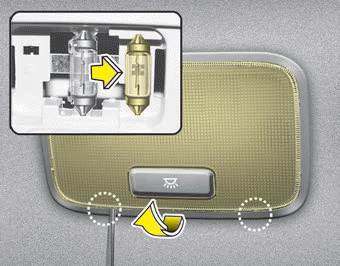

1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap the lens into place.
CAUTION
Be careful not to dirty or damage the lens, lens tab, and plastic housings.
Vanity mirror lamp bulb replacement
WARNING - Interior lamps
Prior to working on the Interior lamps, ensure that the “OFF” button is depressed
to avoid burning your fingers or receiving an electric shock.
1. Using a flat-blade ...
Glove box lamp bulb replacement
1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to ...
