Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Seat Electrical / Seat Heater
Components and components location

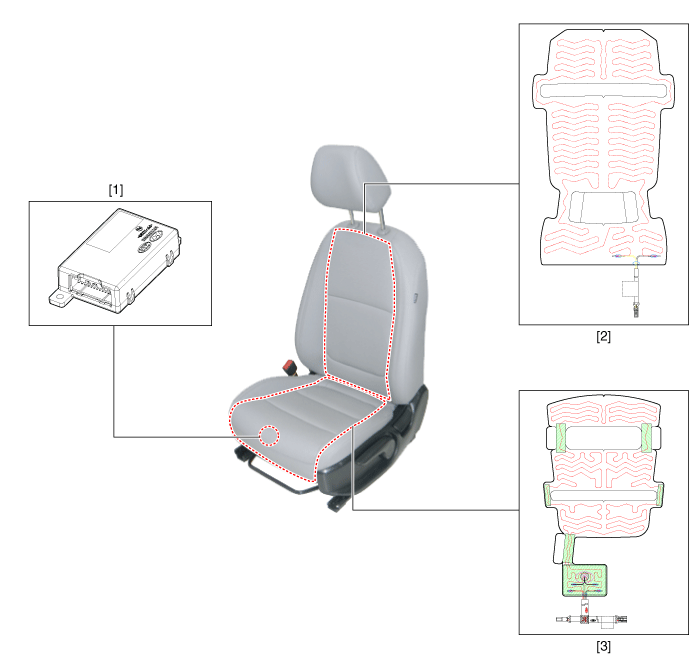

Component Location

1. Seat heater unit (Passenger seat only)
2. Front seat back heater
3. Front seat cushion heater

Schematic diagrams

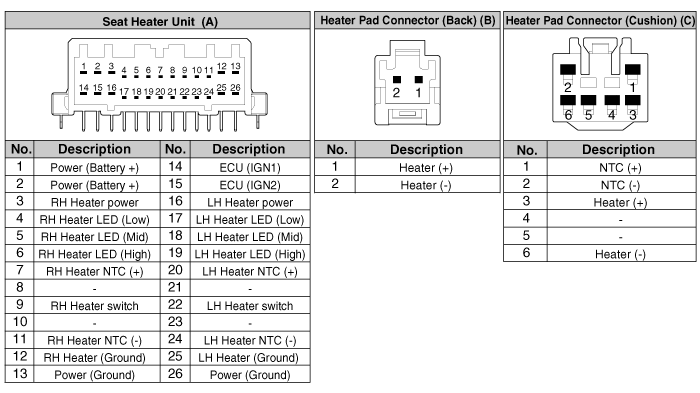

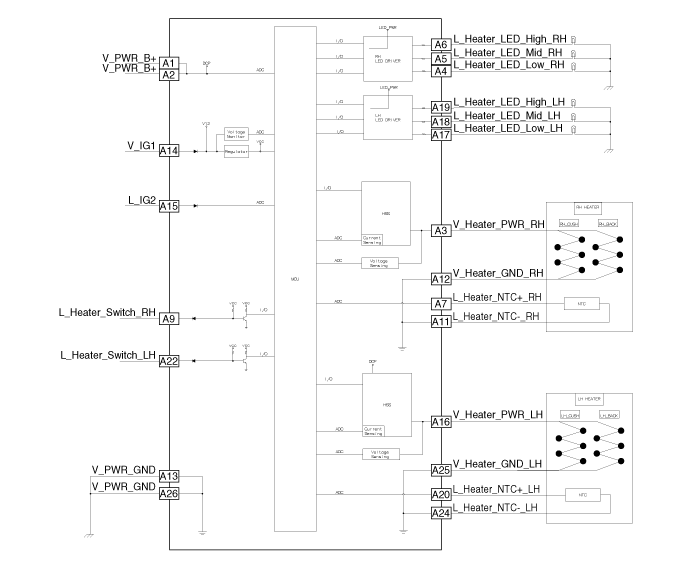

Circuit Diagram

Repair procedures
Inspection
1.

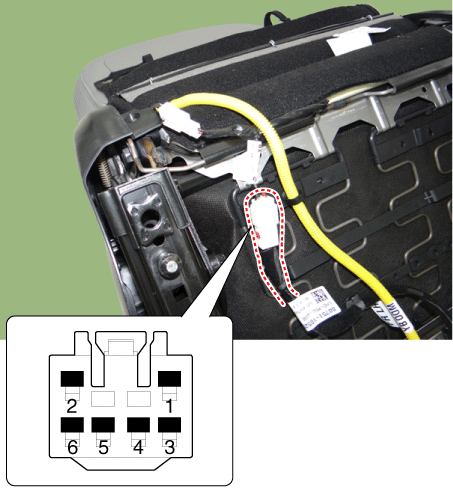

Check for continuity and measure the resistance between terminals No 3 and No 6.

Standard value

Driver / Assists (cushion + back)

Heater seat : 1.54Ω±10%/23°C

Ventilated seat : 1.93Ω±10%/23°C

2.

Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.

Standard value

1st : cushion : 36±2°C, back : 40±2°C

2st : cushion : 39±2°C, back : 45±2°C

3st : cushion : 42±2°C, back : 50±2°C

Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the front seat assembly.

(Refer to Body - "Front Seat Assembly")

3.

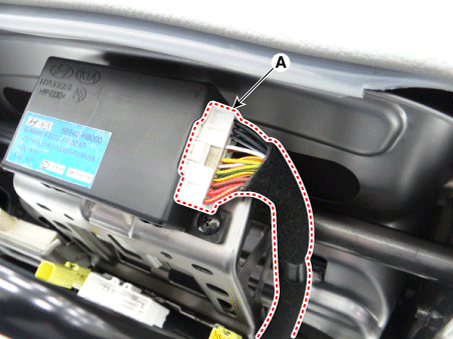

Disconnect the seat heater unit connector (A).

4.

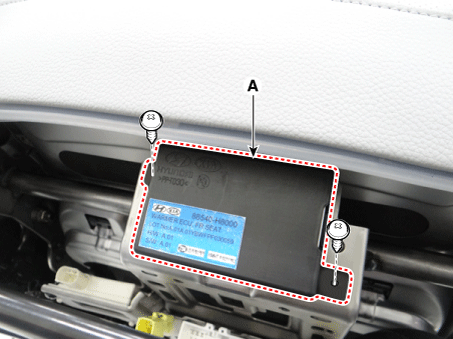

Remove the seat heater unit (A) after loosening the mounting screws.

Installation
1.

Install the seat heater unit and connecting the connector.

2.

Install the front seat assembly.

3.

Connect the negative (-) battery terminal.
