Kia Rio: Airbag Module / Side Airbag (SAB) Module
Description and operation
The Side Airbags (SAB) are installed inside the front seat and protects the driver
and passenger from danger when side crash occurs. The SRSCM determines deployment
of side airbag by using Side Impact Sensor (SIS) signal.
|
Never attempt to measure the circuit resistance of the airbag module
(squib) even if you are using the specified tester. If the circuit resistance
is measured with a tester, accidental airbag deployment will result in serious
personal injury
|

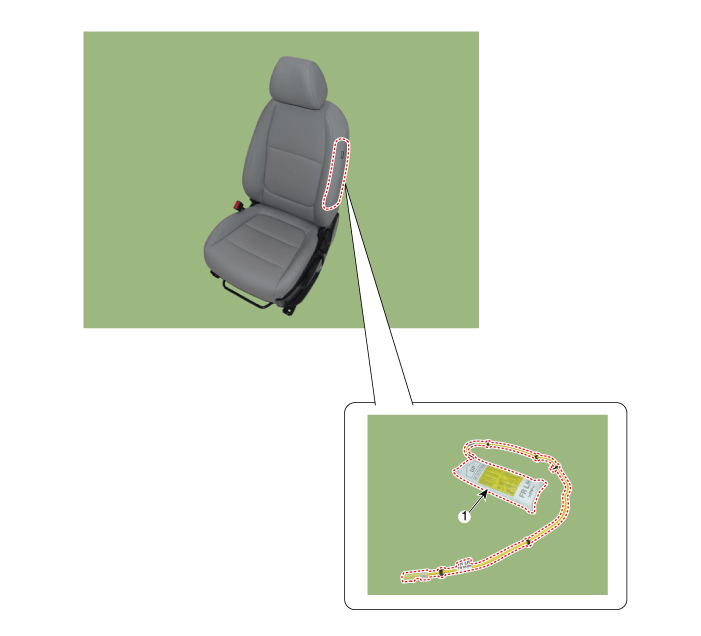

Components and components location
Repair procedures
| 1. |
Disconnect the battery negative terminal.
|
After disconnecting the cables, wait at least 30 seconds.
|
|
| 2. |
Remove the seat back cover.
(Refer to Body -"Front Seat Back Cover")
|
Improper mounting of the front seat back cover, so interfering
with the normal deployment of side airbags and front seat backrest
ensure that the cover is well seated.
|
|
| 3. |

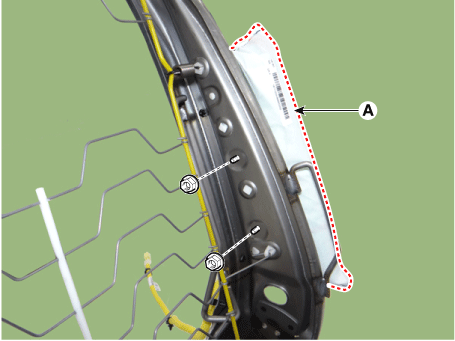

Loosen the side airbag module nuts and then remove the airbag module
(A).
|
Tightening torque :
6.0 - 8.0 N.m (0.6 - 0.8 kgf.m, 4.4 - 5.9 lb-ft)
|
|
| 4. |
Install in the reverse order of removal.
|
Description and operation
Description
The passenger airbag (PAB) is installed inside the crash pad and protects the
front passenger in the event of a frontal crash. The SRSCM determine ...
Description and operation
Description
Curtain airbags are installed inside the headliner (LH and RH) and protect the
driver and passenger from danger when side crash occurs. The SRSCM ...
