Kia Rio: Smart Key System / Smart Key

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Smart Key System / Smart Key
Repair procedures
Smart Key

Smart Key Code Saving

1.

Connect the DLC cable of KDS/GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS/GDS.

2.

Select the vehicle model and then do "Smart key code saving".

3.

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

4.

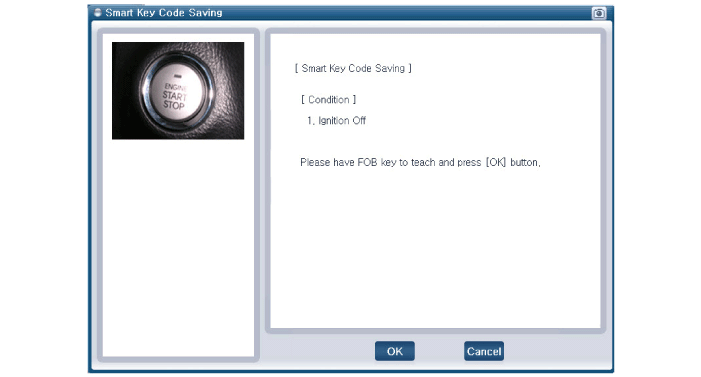

After having the teaching smart key, push "ENTER" key.

5.

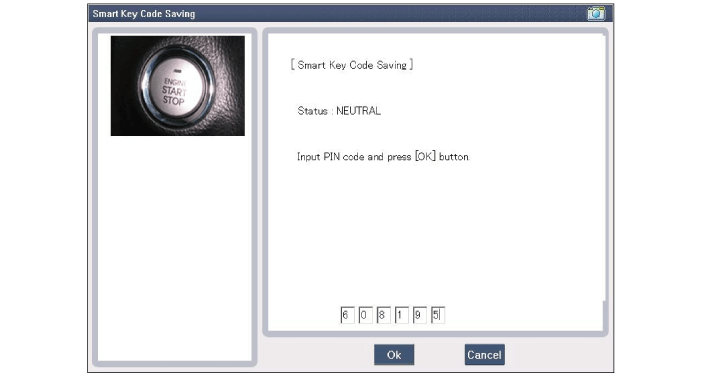

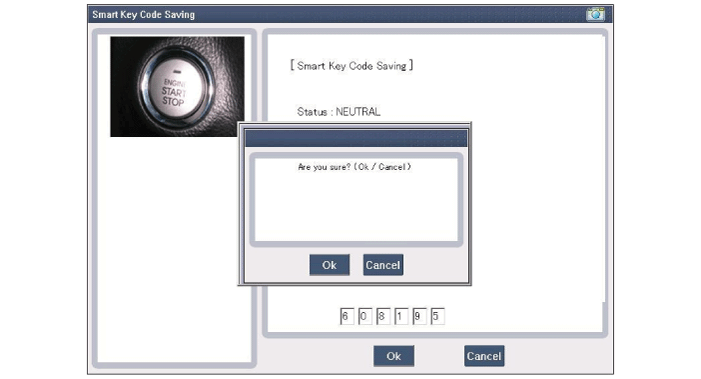

Input the "Pin code" for first key teaching.

6.

Press the SSB with smart key within 5 sec after pressing "OK".

7.

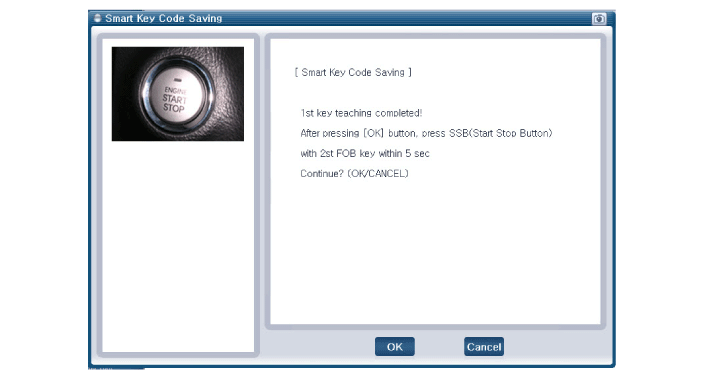

Confirm the message "First key teaching completed".

8.

Press the SSB with smart key within 5 sec after pressing "OK".

9.

Confirm the message "Second key teaching completed".

10.

Then the screen will be shown as below when key teaching process is completed.
