Kia Rio: Button Engine Start System / Start/Stop Button

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button
Components and components location

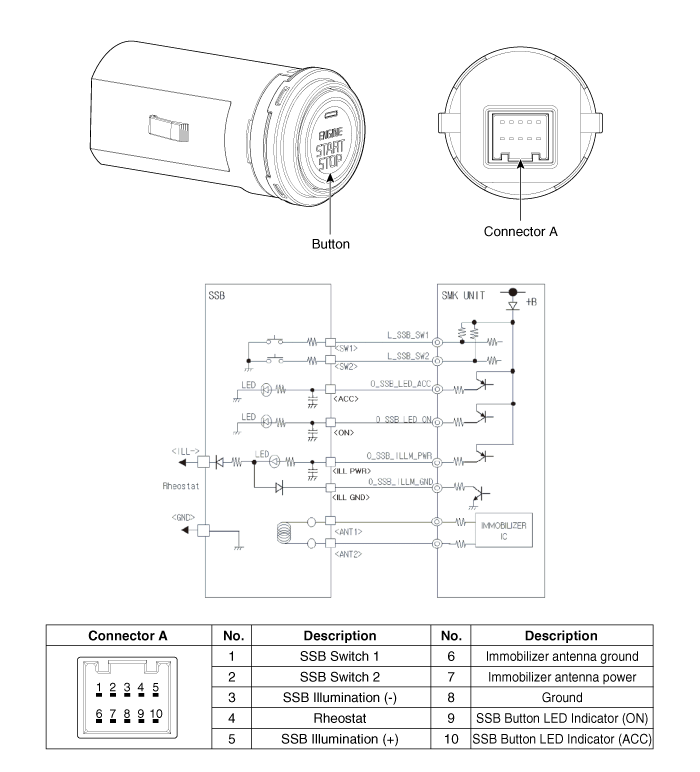

Component

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the crash pad center lower panel.

(Refer to Body - "Crash Pad Center Panel")

3.

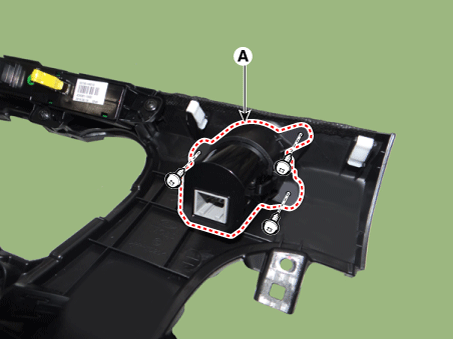

Remove the start/stop button (A) after loosening the mounting screws.

Installation
1.

Install the start/stop button.

2.

Install the crash pad center lower panel.

3.

Connect the negative (-) battery terminal.
