Kia Rio: Sunroof / Sunroof Switch
Components and components location
| Components |
Repair procedures
| Inspection |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

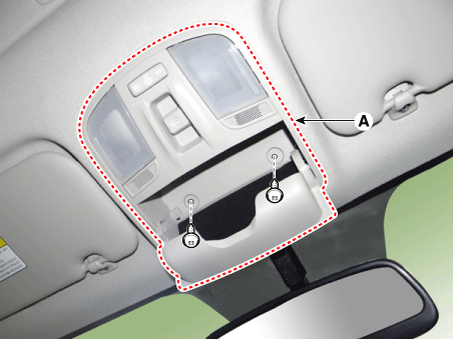

Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).
|
| 3. |

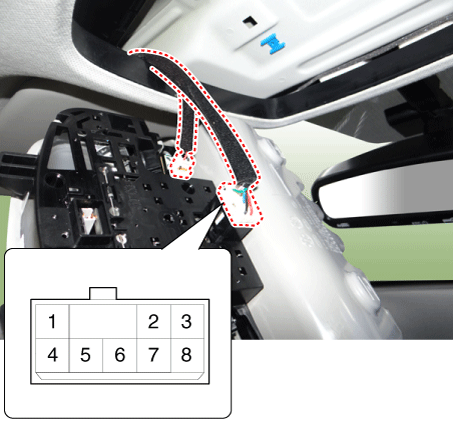

Check for continuity between the terminals. If the continuity is not shown as specified, replace the panoramaroof switch.
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the overhead console lamp. (Refer to Lighting System - "Overhead Console Lamp") |
| 3. |

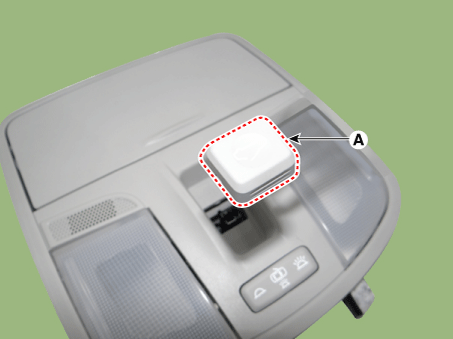

Remove the sunroof switch knob (A).
|
| 4. |

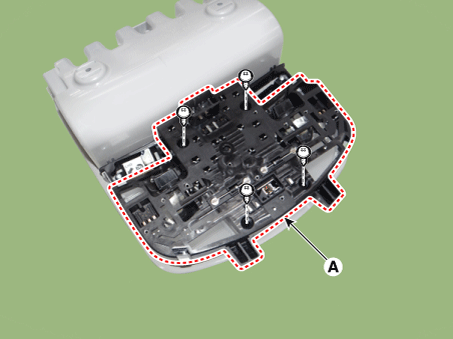

Remove the sunroof bulb base (A) after loosening the mounting screws.
|
| 5. |

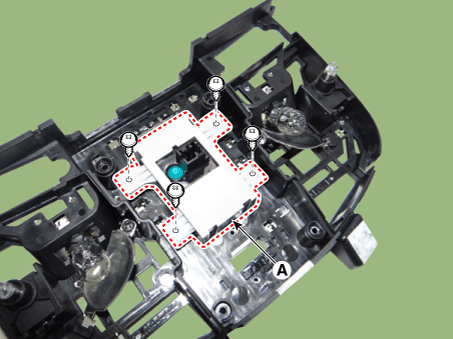

Remove the sunroof switch assembly (A) after loosening the mounting screws.
|
| Installation |
| 1. |
Install the sunroof switch assembly. |
| 2. |
Install the sunroof bulb base. |
| 3. |
Install the sunroof switch knob. |
| 4. |
Install the overhead console lamp. |
| 5. |
Connect the negative (-) battery terminal. |
Sunroof
Components and components location
Component Location
1. Sunroof
2. Sunroof switch
3. Sunroof motor & controller
Schematic diagrams
C ...
Sunroof Motor
Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the roof trim assembly.
(Refer to Body - "Roof Trim ...
