Kia Rio: Interior features / Sunvisor
Use the sunvisor to shield direct light through the front or side windows.
To use the sunvisor, pull it downward.

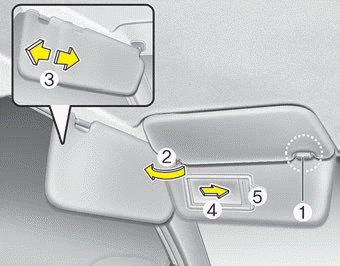

To use the sunvisor for the side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
Adjust the sunvisor extension forward or backward (3).
To use the vanity mirror, pull down the visor and slide the mirror cover (4).
The ticket holder (5) is provided for holding a tollgate ticket (if equipped).
CAUTION - Vanity mirror lamp
Close the vanity mirror cover securely and return the sunvisor to its original position after use. If the vanity mirror is not closed securely, the lamp will stay on and could result in battery discharge and possible sunvisor damage.
Cup holder
WARNING - Hot liquids
Do not place uncovered cups of hot liquid in the cup holder while the vehicle
is in motion. If the hot liquid spills, you may burn yourself. Such a burn to the
driver could ...
Seat warmer
The seat warmer is provided to warm the front seats during cold weather.
With the ignition switch in the ON position, push either of the switches to warm
the driver's seat or the front passenger' ...
