Kia Rio: Light bulbs / Tail lamp (inside) bulb replacement (for 5 door)
Kia Rio 2017-2020 YB Owners Manual / Maintenance / Light bulbs / Tail lamp (inside) bulb replacement (for 5 door)

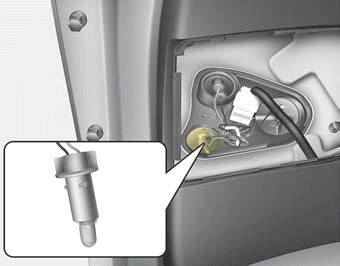

1. Open the liftgate.
2. Remove the service cover.
3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
