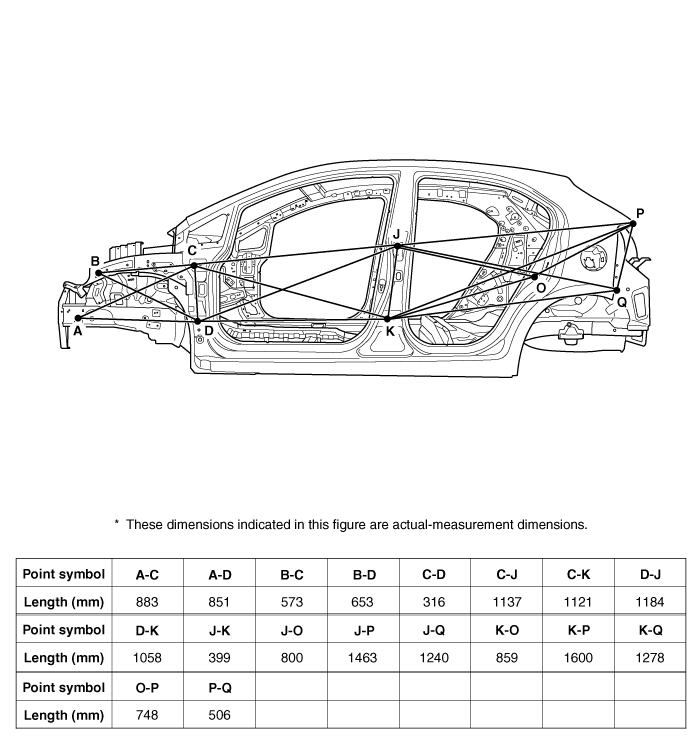

Kia Rio: 5Door Side Body A
|
|
|
|
| Front side member tooling hole (Ø12) |
Fender apron upper member tooling hole (Ø12) |
Front door upper hinge mounting hole (Ø13) |
|
|
|
|
| Front door lower hinge mounting hole (Ø13) |
Rear door upper hinge mounting hole (Ø13) |
Rear door lower hinge mounting hole (Ø13) |
|
|
|
|
| Rear door switch mounting hole (Ø9) |
Side outer panel rear corner |
Rear bumper mounting hole (8.5X8.5) |
