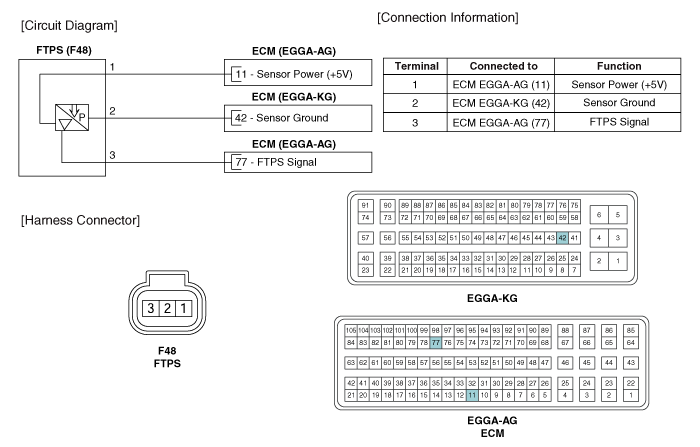

Kia Rio: Circuit Diagram

Specification

Pressure [kPa (kgf/cm², in H2O) Output Voltage (V) -6.67 (-0.068, -26.8) 0.5 0 2.5 +6.67 (0.068, 26.8) 4.5 ...

Inspection

1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Specification: ...
