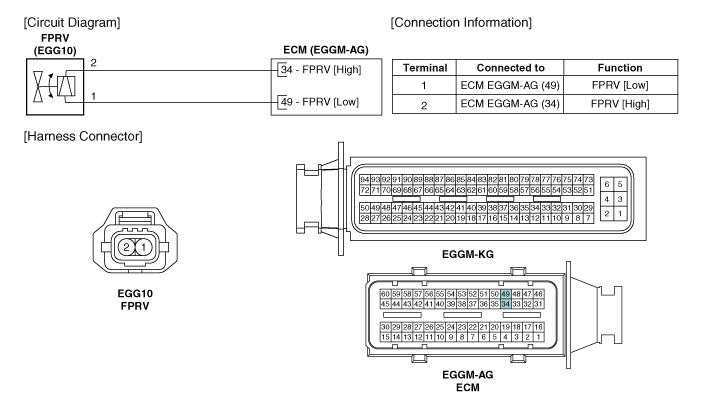

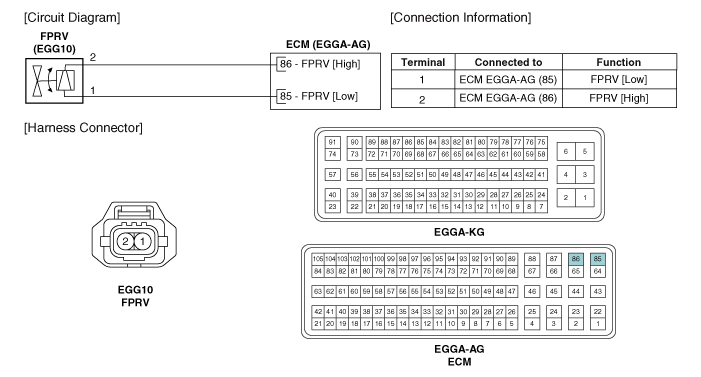

Kia Rio: Circuit Diagram

Signal Waveform

...

Inspection

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector. ...
