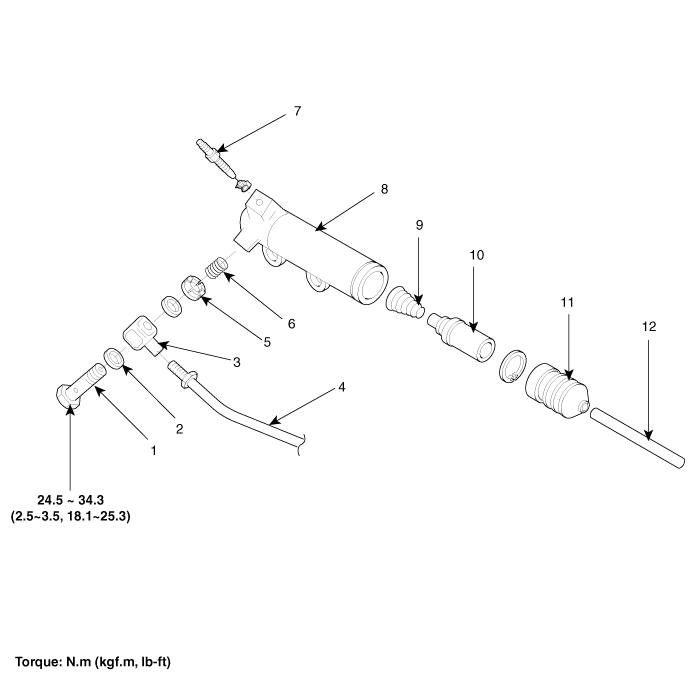

Kia Rio: Components - Clutch Release Cylinder - Clutch System - Kia Rio UB 2012-2020 Service ManualKia Rio: Components


1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod

Clutch Release Cylinder
...
Removal
1. Drain the brake fluid through the bleed plug (A). 2. Remove the clutch release cylinder assembly (C) after removing the tube (B) ...
