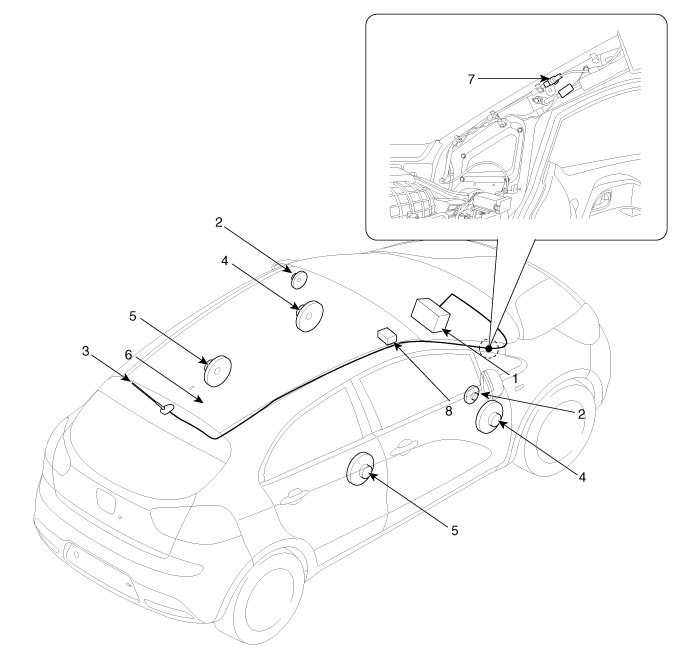

Kia Rio: Components Location
| 1. AVN (A/V & Navigation head unit) 2. Midrange speaker 3. Roof antenna (GPS Radio) 4. Front door speaker |
5. Rear door speaker 6. Antenna feeder cable 7. Feeder cable joint connector 8. Multimedia jack |
