Kia Rio: Components Location
| 1. Automatic transaxle 2. Transaxle control module (TCM) |
3. Shift lever 4. Data Link Connector (DLC) |

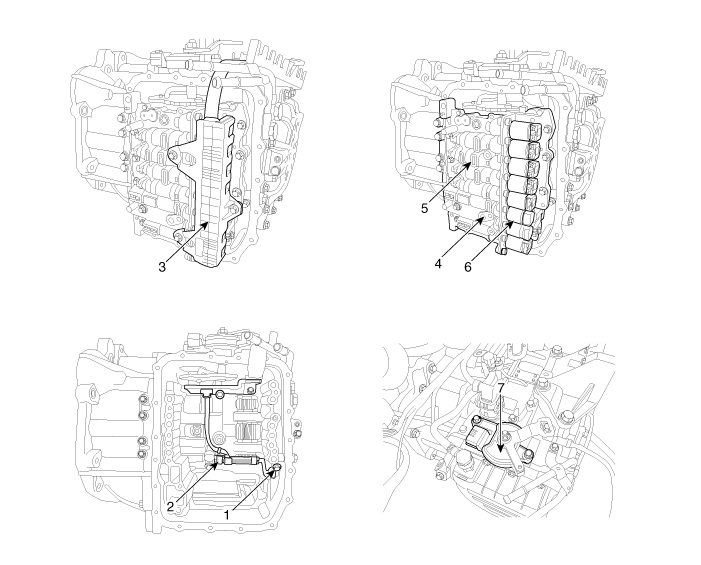

| 1. Input speed sensor 2. Output speed sensor 3. Solenoid valve connect 4. Oil temperature sensor |
5. Valve body assembly 6. Solenoid valve 7. Inhibitor switch |
Circuit Diagram
