Kia Rio: Fluid Components Location - Hydraulic System - Automatic Transaxle System - Kia Rio UB 2012-2020 Service ManualKia Rio: Fluid Components Location

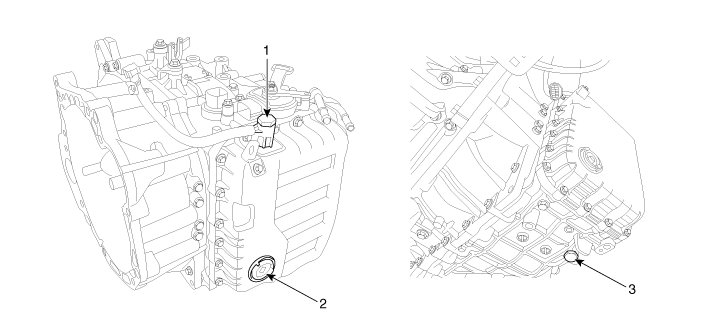

1. Injection hole(eyebolt)
2. Oil level plug
3. Oil drain plug

Oil Pump Components
1. Oil pump cover 2. Oil pump housing 3. Driven gear 4. Drive gear 5. Oil seal 6. Bushing-housing 7. Reaction shaft 8. Bushing-reaction shaft 9. Sleeve 10 ...
Fluid Service Adjustment Procedure
Oil level Check    A check of ATF level is not normally required during scheduled services. If an oil leak is ...
