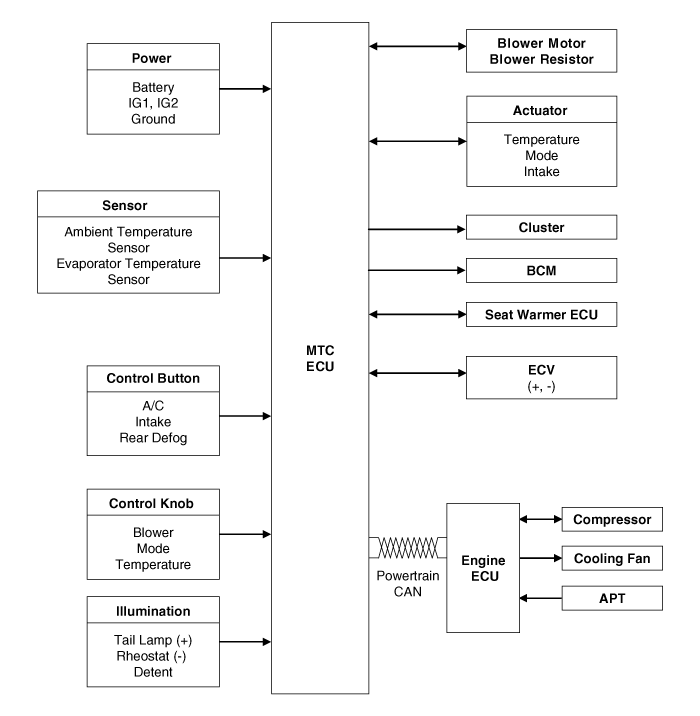

Kia Rio: Heater & A/C Control Unit (MANUAL) Schematic Diagram - Controller - Heating,Ventilation, Air Conditioning - Kia Rio UB 2012-2020 Service ManualKia Rio: Heater & A/C Control Unit (MANUAL) Schematic Diagram

Heater & A/C Control Unit (MANUAL) Replacement


Heater & A/C Control Unit (MANUAL) Components
Connector pin function Connector Pin No Function Connector Pin No Function A 1 Ground B 18 Intake Actu ...
Heater & A/C Control Unit (MANUAL) Replacement
1. Disconnect the negative (-) battery terminal. 2. Remove the heater & A/C controller (A) from the center facia using a flat-head scre ...
