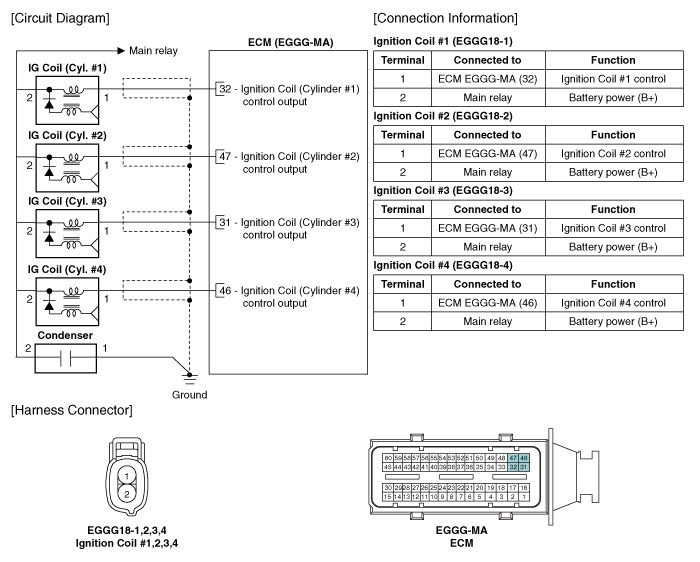

Kia Rio: Ignition Coil: Circuit Diagram

Ignition Coil: Specification

Item Specification Primary Coil Resistance (Ω) 0.75 ± 15％ [20°C (68°F)] Secondary Coil Resistance (kΩ) 5.9 ± 15％ [20 ...

Ignition Coil: Removal

1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3. Disconnect the ignition coil connec ...
