Kia Rio: Inspection
Self Diagnosis With GDS
Smart key system defects can be quickly diagnosed with the GDS. GDS operates
actuator quickly to monitor, input/output value and self diagnosis.
The following three features will be major problem in SMART KEY system.
|
1. |
Problem in SMART KEY unit input.
|
|
2. |
Problem in SMART KEY unit.
|
|
3. |
Problem in SMART KEY unit output.
|
The following three diagnostic solutions will be the main solution process
to a majority of concerns.
|
1. |
SMART KEY unit Input problem : switch diagnosis
|
|
2. |
SMART KEY unit problem : communication diagnosis
|
|
3. |
SMART KEY unit Output problem : antenna and switch output diagnosis
|
Switch Diagnosis
|
1. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel, turn the power on GDS.
|
|
2. |

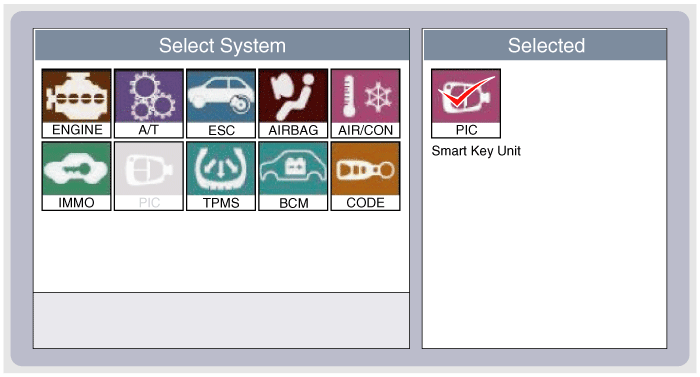

Select the vehicle model and then SMART KEY system.
|
|
3. |
Select the "SMART KEY unit".
|
|
4. |

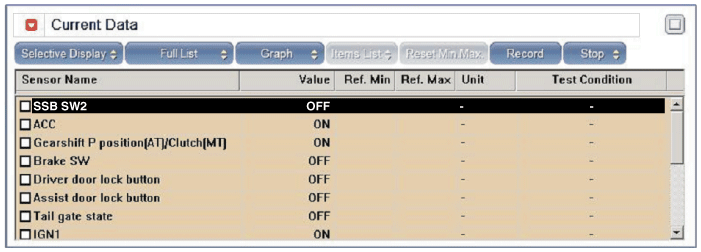

After IG ON, select the "Current data".
|
|
5. |
You can see the situation of each switch on scanner after connecting
the "current data" process.
Display
|
Description
|
FL Toggle switch
|
ON : Push button is ON in the driver door handle.
|
FR Toggle switch
|
ON : Push button is ON in the assist door handle.
|
Trunk switch
|
ON : Trunk button is ON.
|
Gear P Position
|
ON : Shift lever is P position.
|
IGN 1
|
ON : IGN switch is IG position.
|
ACC
|
ON : IGN switch is ACC position.
|
Push Knob switch
|
ON : Push knob switch is ON.
|
External Buzzer
|
ON : Buzzer is ON.
|
|
Communication Diagnosis With GDS (Self Diagnosis)
|
1. |
Communication diagnosis checks that the each linked components
operates normal.
|
|
2. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel.
|
|
3. |

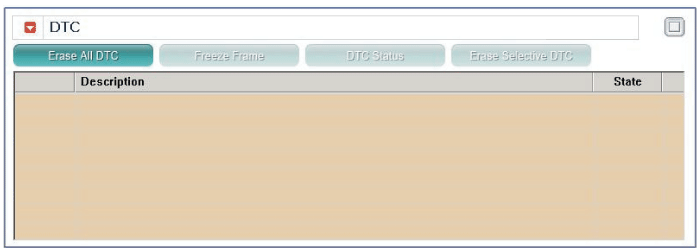

After IG ON, select the "DTC".
|

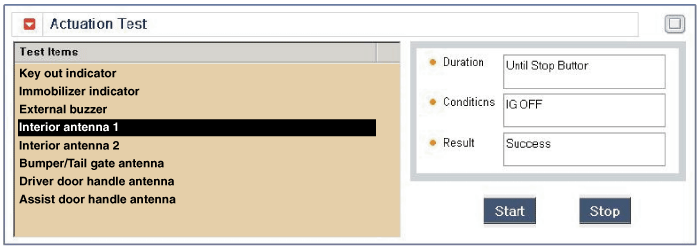

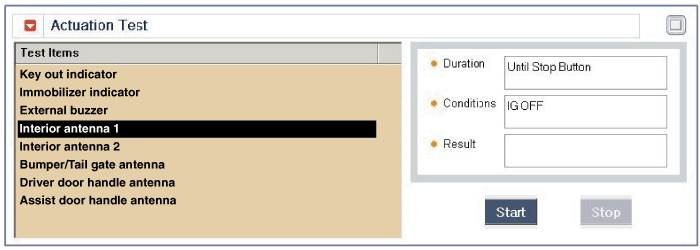

Antenna Actuation Diagnosis
|
1. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel.
|
|
2. |
After IG ON, select the "ACTUATION TEST".
|
|
3. |
Set the smart key near the related antenna and operate it with
a GDS.
|
|
4. |
If the LED of smart key is blinking, the smart key is normal.
|
|
5. |
If the LED of smart key is not blinking, check the voltage of
smart key battery.
|
|
6. |
Antenna actuation
|
| A.
INTERIOR Antenna 1
|
| B.
INTERIOR Antenna 2
|
| C.
Trunk antenna
|
| D.
BUMPER/Antenna
|
| E.
DRV_DR Antenna
|
| F.
AST_DR Antenna
|

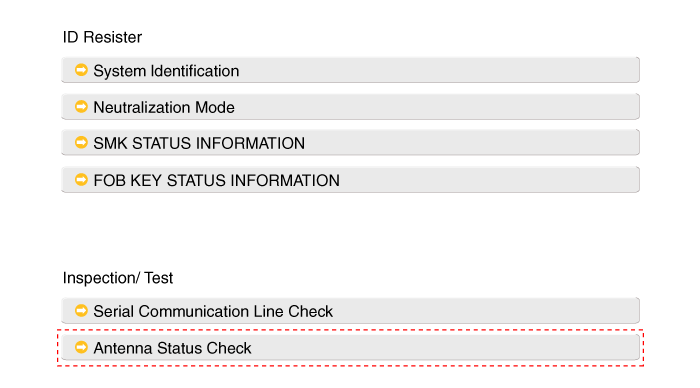

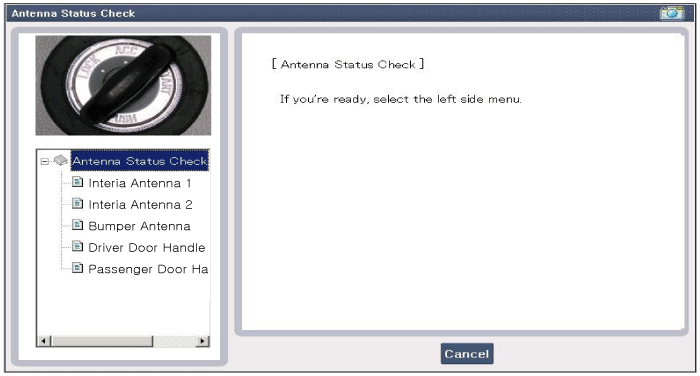

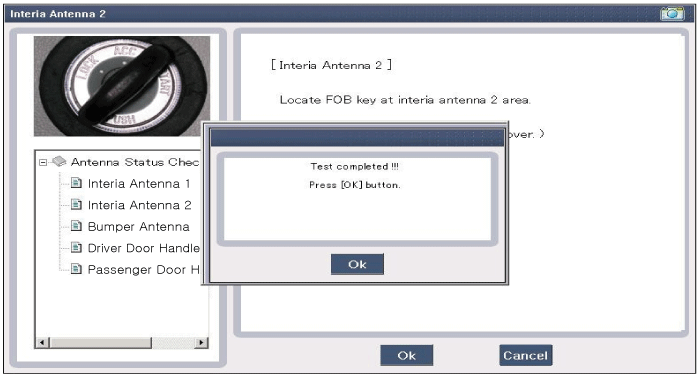

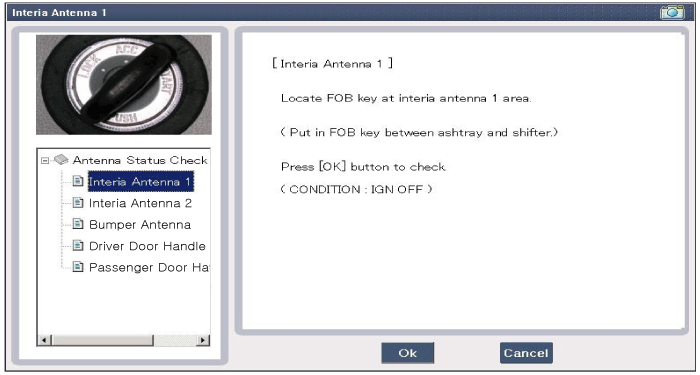

Antenna Status Check
|
1. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel.
|
|
2. |
Select the "Antenna Status Check".
|
|
3. |
After IGN ON, select the "Antenna Status Check".
|
|
4. |
Set the smart key near the related antenna and operate it with
a GDS.
|
|
5. |
If the smart key runs normal , the related antenna, smart key(transmission,
reception) and exterior receiver are normal.
|
|
6. |
Antenna status
|
| A.
INTERIOR Antenna 1
|
| B.
INTERIOR Antenna 2
|
| C.
Trunk antenna
|
| D.
BUMPER/Antenna
|
| E.
DRV_DR Antenna
|
| F.
AST_DR Antenna
|
Interior Antenna Actuation Check
|
1. |
Set the smart key in the following shade area and check the IG
ON.
|
|
2. |
If the ignition is ON, the antenna runs normal.
|
|
3. |
Check the interior antenna ignition mode.
|
|
4. |
Set the smart key in the following shade area and actuate the
antenna. Check the LED of smart key is blinking.
|
|
5. |
If the LED of smart key is not blinking, check the antenna in
shade area.
|

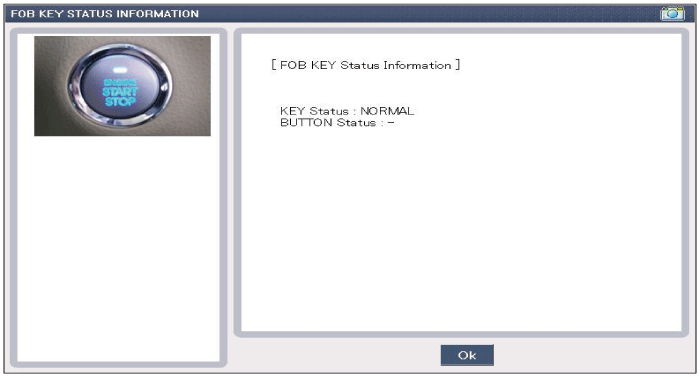

FOB Status Check
|
1. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel.
|
|
2. |

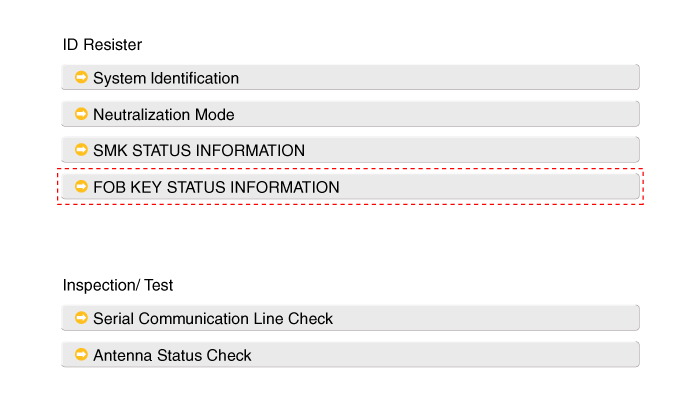

After IGN ON, select the "FOB KEY STATUS INFO".
|

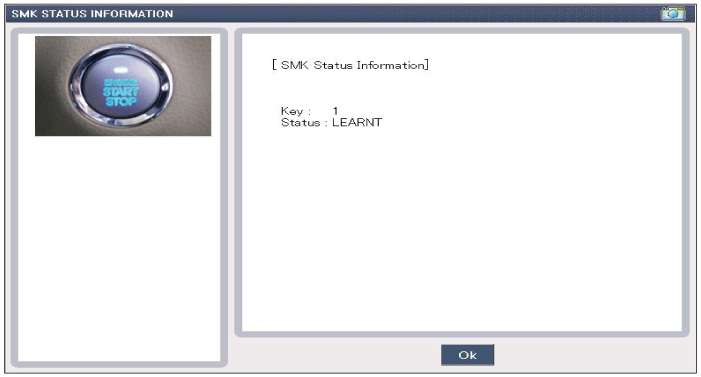

Smart Key Status Check
|
1. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel.
|
|
2. |

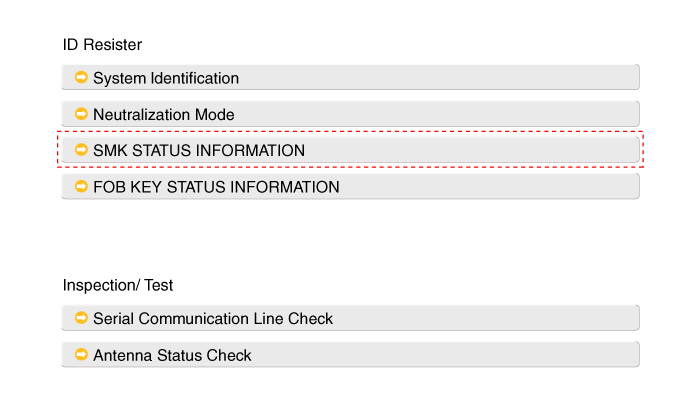

After IGN ON, select the "SMK STATUS INFO".
|

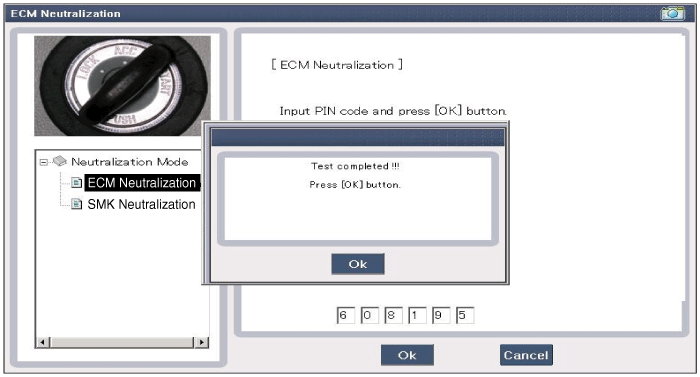

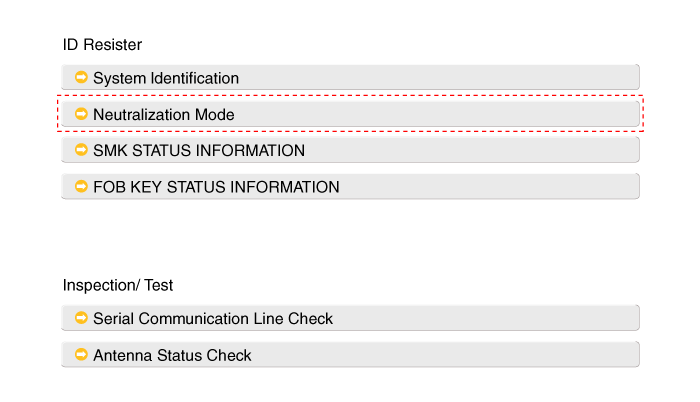

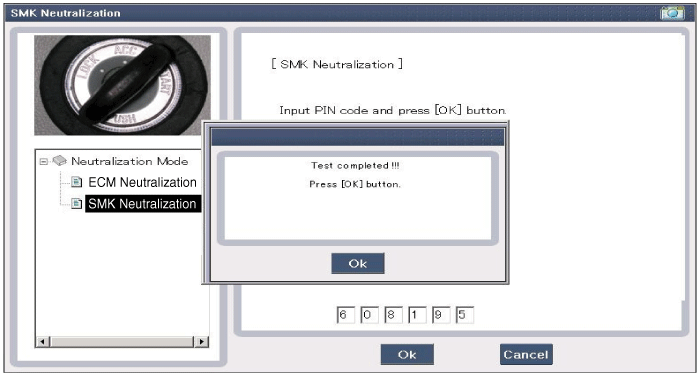

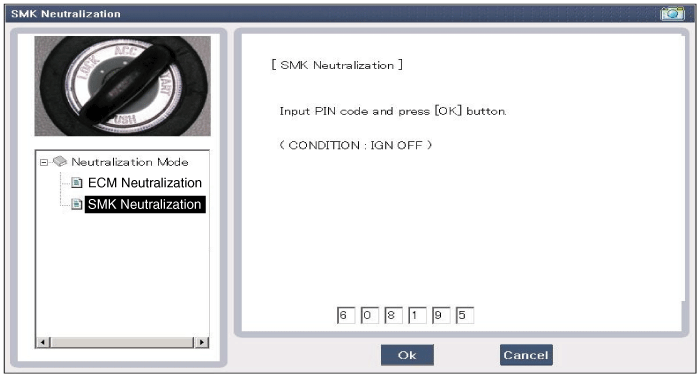

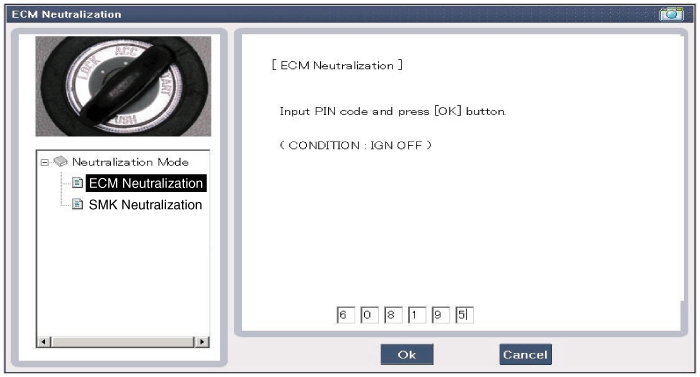

Neutralization Status Check
|
1. |
Connect the cable of GDS to the data link connector in driver
side crash pad lower panel.
|
|
2. |

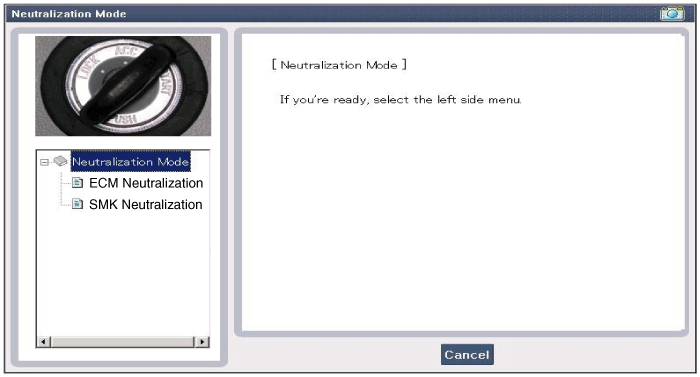

After IGN ON, select the "Neutralization mode".
|
Input Switch List
No
|
Item name
|
Unit
|
1
|
SSB switch2
|
-
|
2
|
ACC
|
-
|
3
|
IGN1
|
-
|
4
|
Gear 'P' Position
|
-
|
5
|
Brake switch
|
-
|
6
|
FL Door Lock Button
|
-
|
7
|
FR Door Lock Button
|
-
|
8
|
Trunk Lid switch
|
-
|
9
|
Battery Voltage
|
-
|
10
|
Alternator Voltage
|
-
|
11
|
KEY out Indicator Lamp
|
-
|
12
|
Immobilizer Lamp
|
-
|
13
|
External Buzzer
|
-
|
Actuator List
No.
|
Item name
|
Condition
|
1
|
Immo.indicator Lamp
|
Ignition switch ON
Engine off
|
2
|
External Buzzer
|
Ignition switch ON
Engine off
|
3
|
Interior Antenna 1 Active
|
Ignition switch ON
Engine off
|
4
|
Interior Antenna 2 Active
|
Ignition switch ON
Engine off
|
5
|
Bumper Antenna Active
|
Ignition switch ON
Engine off
|
6
|
DRV DR Antenna Active
|
Ignition switch ON
Engine off
|
7
|
AST DR Antenna Active
|
Ignition switch ON
Engine off
|
Passive Functions
The system allows the user to access the vehicle without having to perform
any actions (e.g. RKE button pressing) with the SMART KEY fob. It is sufficient
that a valid S ...
