Kia Rio: Installation
|
1. |
Installation is the reverse of removal.
|
If the oil seal on the transaxle case side is damaged and fluid
is leaking, replace the oil seal with a new unit. When installing the
new oil seal, use the specialized tool (oil seal installer, 09452-26100).
After replacement or reinstallation procedure of the automatic
transaxle assembly, must perform procedures below.
| •
Power steering fluid replacement and air bleeding. (Refer
to "General information" in ST group)
|
| •
Adding automatic transaxle fluid. (Refer to "Hydraulic
system (Fluid)" in this group)
|
| •
After servicing the automatic transaxle or TCM, clear
the diagnostic trouble codes (DTC) using the GDS tool.
Diagnostic trouble codes (DTC) cannot be cleared by disconnecting
the battery.
|
| •
When deleting diagnostic trouble code, use the GDS as
possible.
|
| •

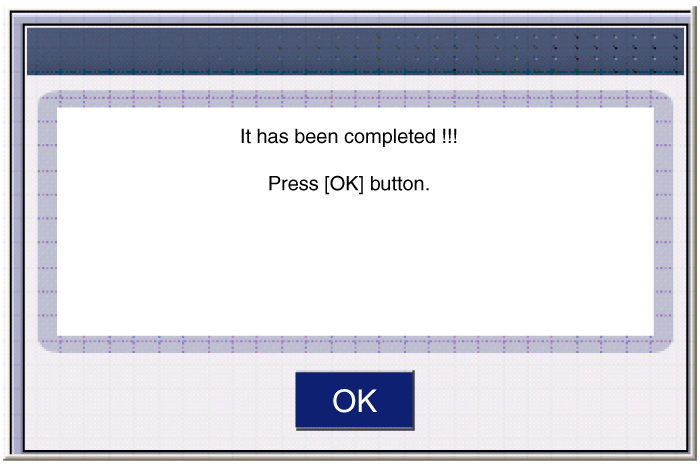

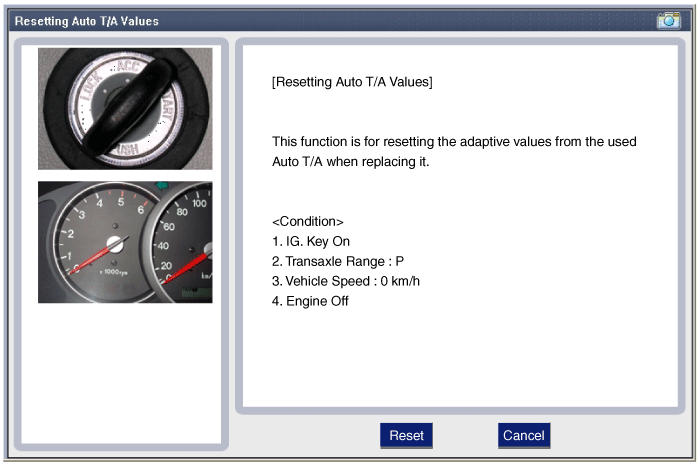

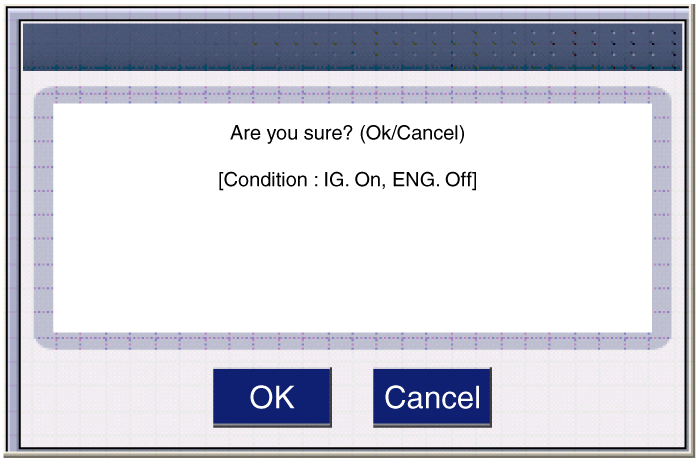

When replacing the automatic transaxle, reset the automatic
transaxle's values by using the GDS.
|
| •
Perform TCM learning after replacing the transaxle to
prevent slow transaxle response, jerky acceleration and jerky
startup. (Refer to "Automatic transaxle control system (Repair
procedures)" in this group)
|
1.
Remove the following items;
A.
Air cleaner assembly (A) and air duct (B).
(Refer to "Intake and Exhaust system" ...
