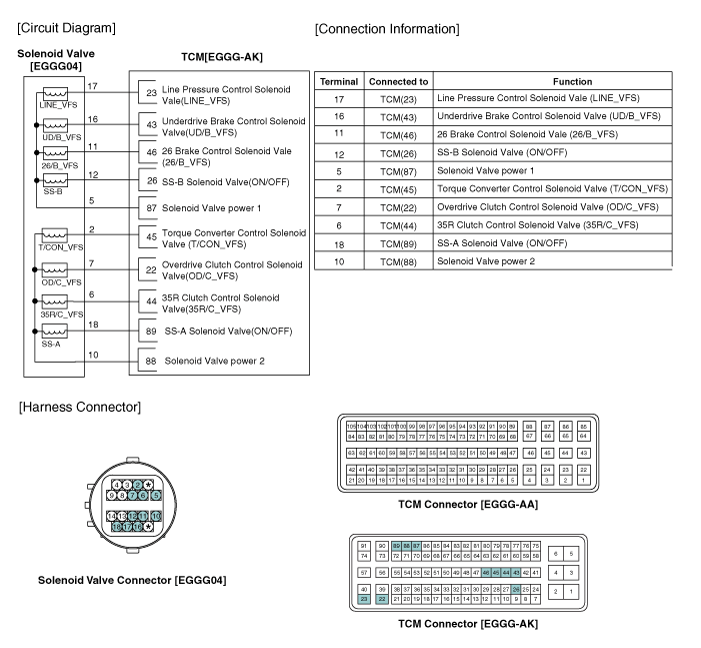

Kia Rio: Line Pressure Control Solenoid Valve Circuit Diagram

Line Pressure Control Solenoid Valve Specifications

Direct control VFS[LINE Pressure] ▷ Control type : Normal low type Control Pressure kpa (kgf/cm², psi) 500.14 ~ 9.81 (5.1 ~ 0.1,72.54 ~ 1.42) Current ...

Line Pressure Control Solenoid Valve Inspection

1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor ...
