Kia Rio: Multimedia Jack Description

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of distortions from media connected to the AUX source, the audio unit may not be defective but the output level of the used media does not match the specification of the AUX input.

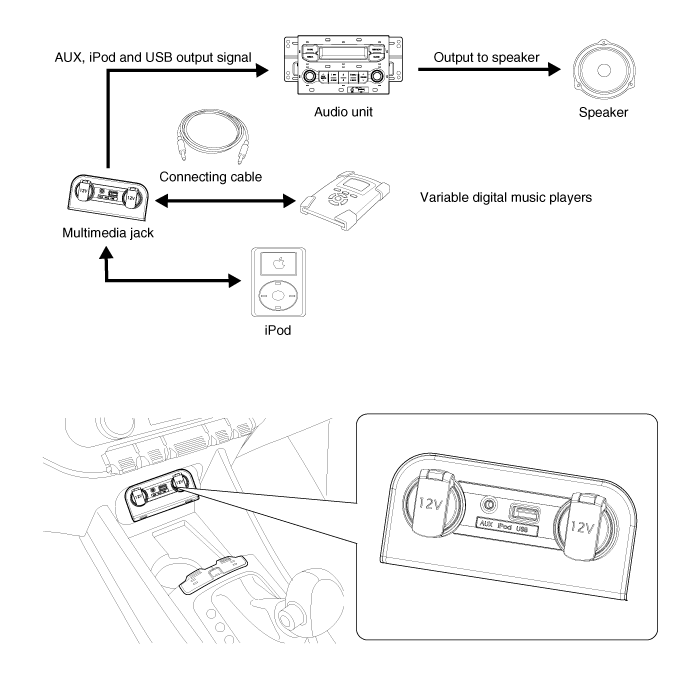

Multimedia Jack Circuit Diagram

...

Multimedia Jack Removal

1. Using a screwdriver or remover, remove the multimidia jack assembly.    ...
