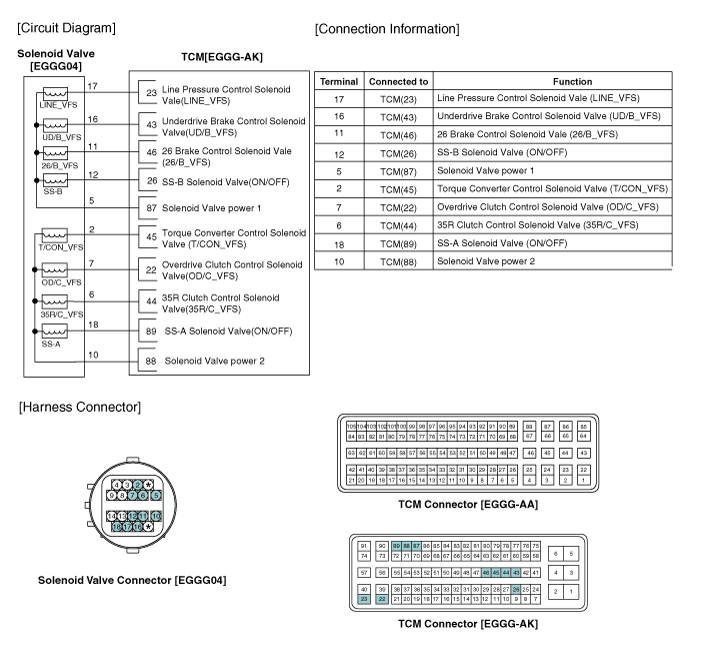

Kia Rio: SS-B Solenoid Valve(ON/OFF) Circuit Diagram

SS-B Solenoid Valve(ON/OFF) Specifications

ON/OFF Solenoid Valve(SS-A, SS-B) ▷ Control type : Normal low type Control pressure kpa (kgf/cm², psi) 490.33(5.0, 71.12)  Internal resistance(&# ...

SS-B Solenoid Valve(ON/OFF) Inspection

1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor ...
