Kia Rio: Storage compartment - Manual climate control system - Features of your vehicle - Kia Rio UB 2012-2020 Owners ManualKia Rio: Storage compartment

These compartments can be used to store small items.

To avoid possible theft, do not leave valuables in the storage compartment. Always keep the storage compartment covers closed while driving. Do not attempt to place so many items in the storage compartment that the storage compartment cover can not close securely.

WARNING - Flammable materials

Do not store, propane cylinders, or other flammable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle is exposed to hot temperatures for extended periods.

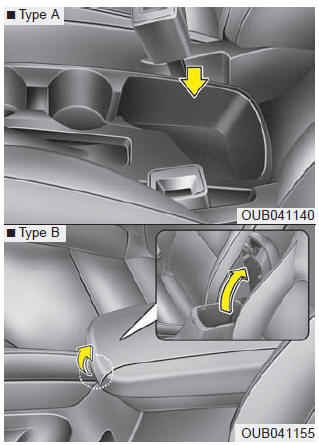

Center console storage (if equipped)


Center console storage (if equipped)

To open the center console storage, pull up the lever.

Glove box


Glove box

To open the glove box, pull the handle and the glove box will automatically open. Close the glove box after use.

Always keep the glove box closed while the vehicle is in operation.

Cool box (if equipped)


Cool box (if equipped)

You can keep beverage cans or other items cool in the glove box.

1.Turn on the air conditioning.

2.Slide the open/close lever of the vent installed in the glove box to the open position.

3.When the cool box is not used, slide the lever to the closed position.

If some items in the cool box block the vent, the cooling effectiveness of the coolbox is reduced.

✽ NOTICE

Do not put perishable food in the cool box because it may not maintain the necessary consistent temperature to keep the food fresh.

✽ NOTICE

If the temperature control knob is in the warm or hot position, warm or hot air will flow into the glove box.

Luggage net holder (if equipped)


Luggage net holder (if equipped)

To keep items from shifting in the cargo area, you can use the 4 holders located in the cargo area to attach the luggage net.

If necessary, contact your authorized Kia dealer to obtain a luggage net.

To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky objects in the luggage compartment.

WARNING - Luggage net

Always keep your face and body out of the luggage net recoil path and avoid using the luggage net when the straps have visible signs of wear or damage. The luggage net can snap and cause injuries.

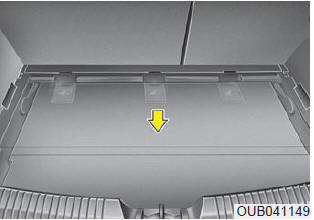

Luggage tray (5 door) (if equipped)


Luggage tray (5 door) (if equipped)

You can place a first aid kit, a reflector triangle, tools, etc. in the box for easy access.

1.Grasp the handle on the top of the cover and lift it.

2.Fold the rear part of luggage tray board frontward.

3.Lift up luggage tray board frontward (Luggage tray board stand itself)



Increase cargo space (if equipped)


Increase cargo space (if equipped)

If you want to increase cargo space,

1.Grasp the handle on the top of the cover and lift it

2.Fold the rear part of the luggage tray board frontward

3.Lift the luggage tray board hinge and pull it to the end of sliding slot.

4.Rotate it downward and slide it frontward (refer to the above pictures)
