Kia Cee'd: Engine Control System / Accelerator Position Sensor (APS) Schematic diagrams
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Accelerator Position Sensor (APS) Schematic diagrams

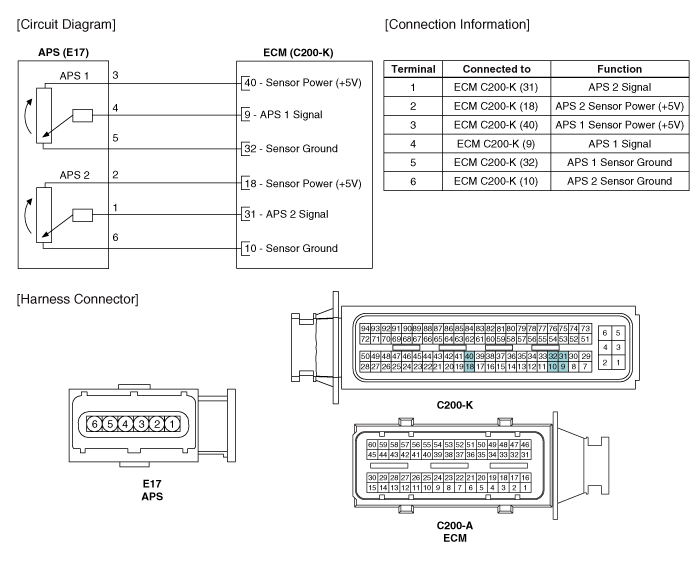

| Circuit Diagram |
Accelerator Position Sensor (APS) Specifications
Specification
Accelerator
Position
Output Voltage (V) [Vref=5V]
APS1
APS2
C.T
0.7 ~ 0.8
...
Accelerator Position Sensor (APS) Repair procedures
Inspection
1.
Connect the GDS on the Data Link Connector (DLC).
2.
Turn the ignition switch ON.
3.
Measur ...
