| Component Location Index |

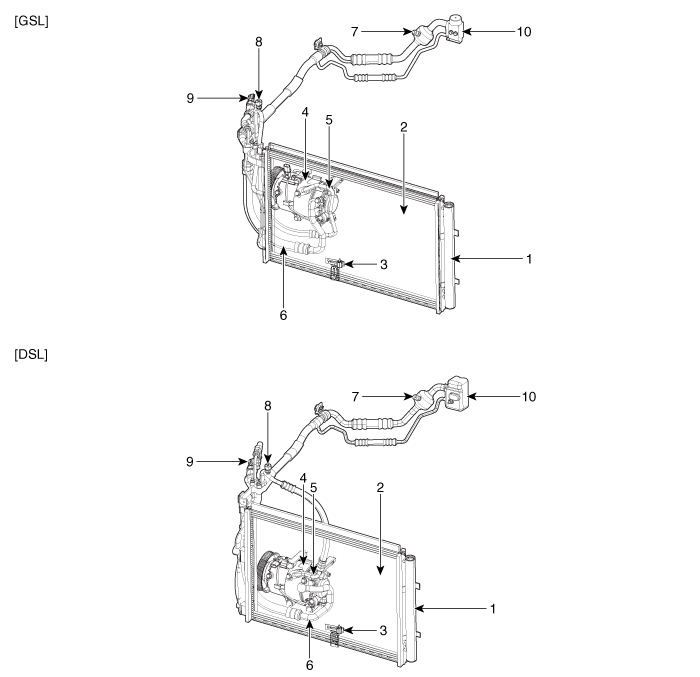

| Engine Room |
| 1. Receiver
Drier 2. Condenser 3. Ambient Temperature Sensor 4. Compressor 5. Discharge Hose |
6. Suction
& Liquid Tube Assembly 7. Service Port (Low Pressure) 8. Service Port (High Pressure) 9. A/C Pressure Transducer (APT) 10. Expansion Valve |

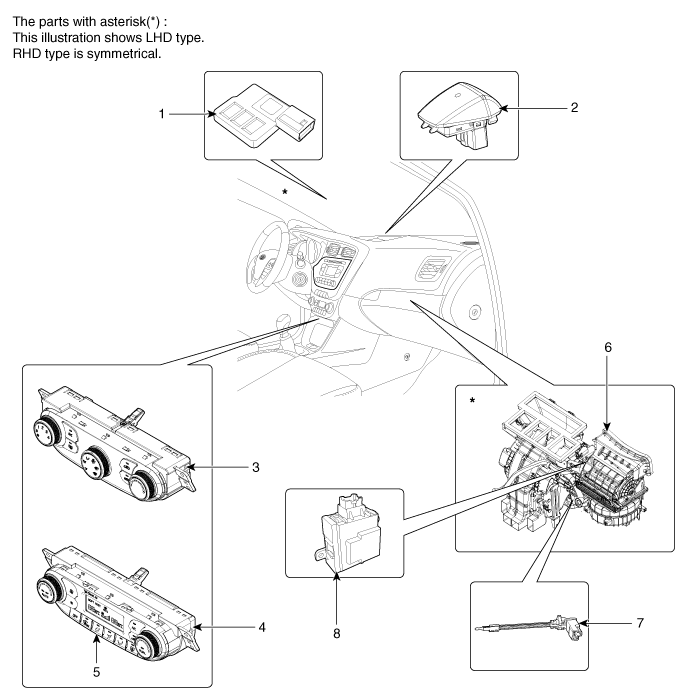

| Interior |
| 1. Auto Defogging Sensor 2. Photo Sensor 3. Heater & A/C controller (Manual) 4. Heater & A/C controller (DATC with Audio) |
5. In-car Sensor 6. Heater & Blower Unit 7. Evaporator Temperature Sensor 8. Cluster lonizer |
Air Conditioning System Repair procedures
Refrigerant System Service
Basics (R-134a)
Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet the requirements
of SAE J2210 to remo ...
Compressor Oil Repair procedures
Oil Specification
1.
The R-134a or R-1234yf system requires synthetic compressor oil (PAG)
whereas the R-12 system requires mineral compressor oil. The two oils
...
