Kia Cee'd: Charging System / Alternator Components and components location

Kia Cee'd JD Service Manual / Engine Electrical System / Charging System / Alternator Components and components location

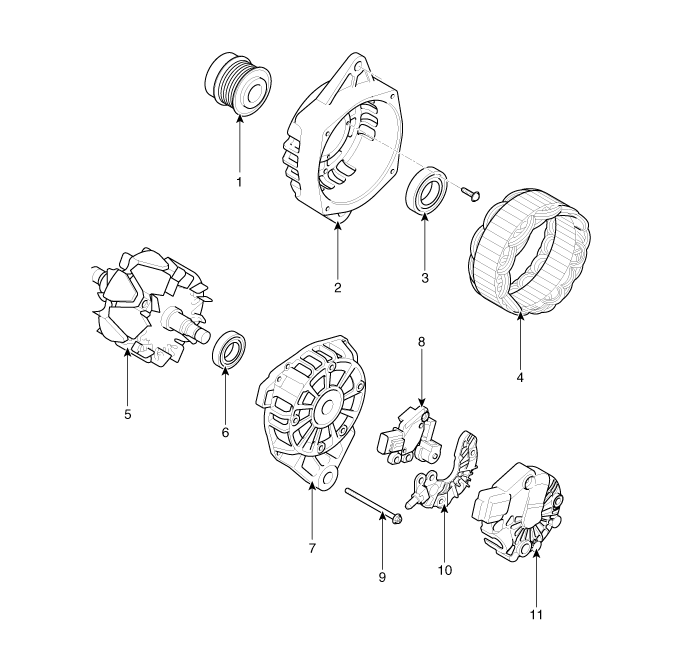

Components


1. OAD (Overrunning Alternator Decoupler)
2. Front Bracket
3. Front Bearing
4. Stator
5. Rotor
6. Rear Bearing
7. Rear Bracket
8. Brush Holder Assembly
9. Through Bolt
10. Rectifier Assembly
11. Rear Cover
